TPS7348QD

TPS7348QD Overview

Product belongs to the TPS7348 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC 5.2 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 4.85V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.725 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.85 V Maximum Input Voltage: 10 V Output current: 500 mA The product's + 5.2 V is 5.1 V. Load regulation is 65 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 340 uA Reference voltage is 1.27 V . The 0.0029 V at 10 mA. The maximum 6 mV at 10 mA is 360 mV. This product's 35 mV is 0.01 %/V.

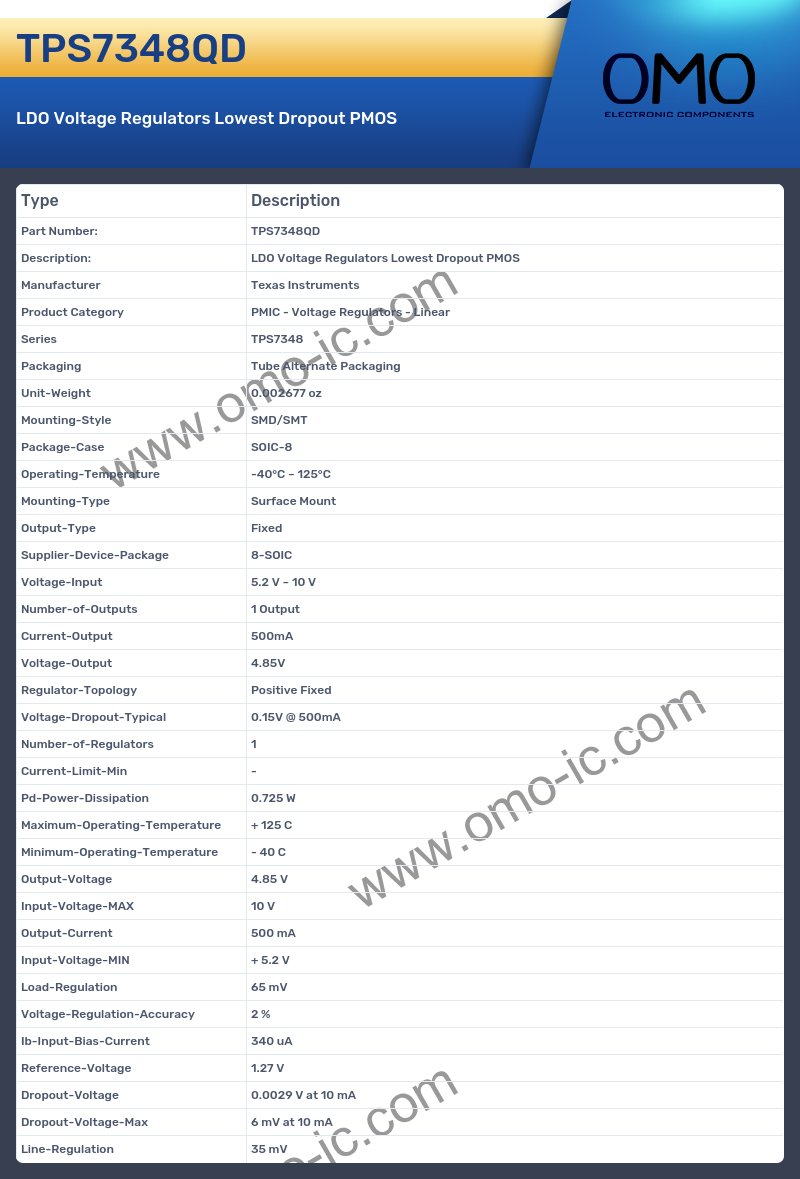

TPS7348QD Image

TPS7348QD Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS7348
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input 5.2 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 4.85V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.15V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.725 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.85 V
• Input-Voltage-MAX 10 V
• Output-Current 500 mA
• Input-Voltage-MIN + 5.2 V
• Load-Regulation 65 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 340 uA
• Reference-Voltage 1.27 V
• Dropout-Voltage 0.0029 V at 10 mA
• Dropout-Voltage-Max 6 mV at 10 mA
• Line-Regulation 35 mV
