TPS76533DR

TPS76533DR Overview

Product belongs to the TPS76533 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Up to 10V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.904 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 10 V Output current: 150 mA The product's + 2.7 V is 5.1 V. Load regulation is 0.3 %. The voltage regulation accuracy of this product is 3 %. Input bias current of 35 uA This product has a 50 uA of 7 mA, making it ideal for low-power applications. The 0.14 V at 150 mA. The maximum 240 mV at 150 mA is 360 mV. This product's 0.01 % / V is 0.01 %/V.

TPS76533DR Image

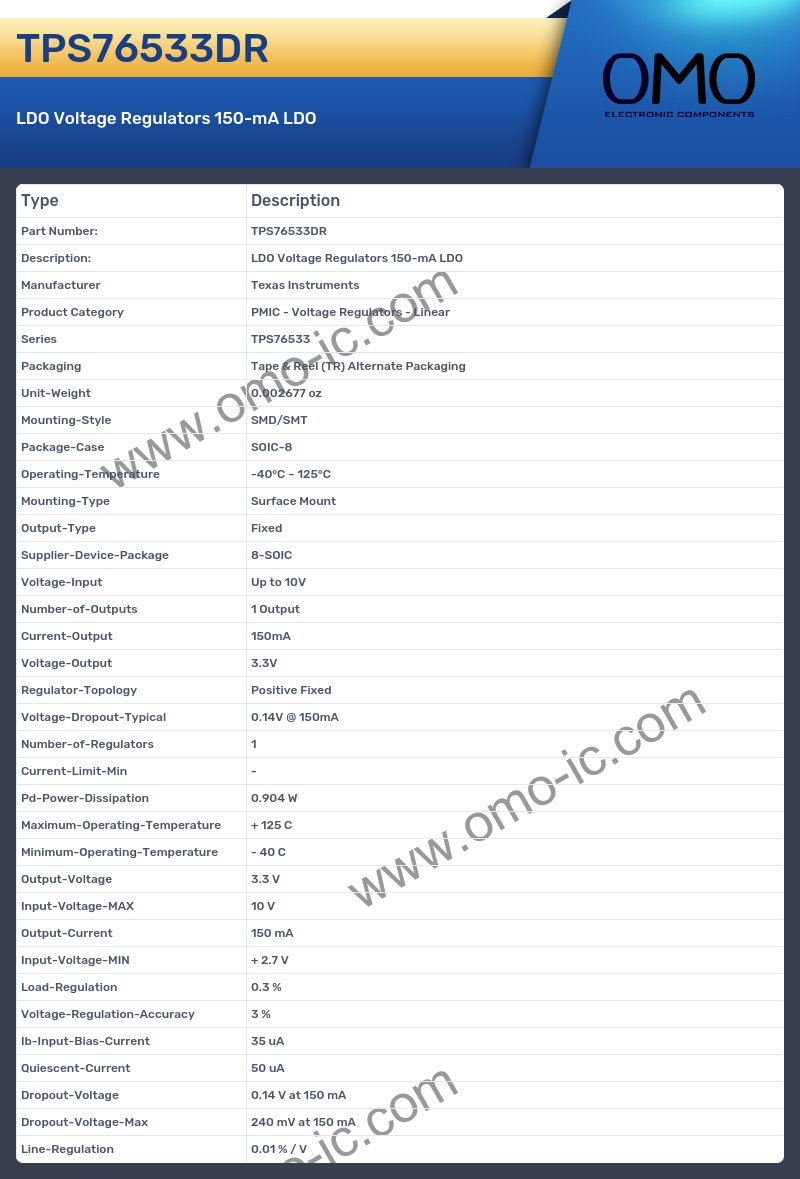

TPS76533DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS76533
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input Up to 10V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.14V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.904 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 10 V
• Output-Current 150 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 0.3 %
• Voltage-Regulation-Accuracy 3 %
• Ib-Input-Bias-Current 35 uA
• Quiescent-Current 50 uA
• Dropout-Voltage 0.14 V at 150 mA
• Dropout-Voltage-Max 240 mV at 150 mA
• Line-Regulation 0.01 % / V
