TPS77015DBVR

TPS77015DBVR Overview

Product belongs to the TPS77015 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 2.7 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.555 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V Maximum Input Voltage: 10 V Output current: 50 mA The product's + 2.7 V is 5.1 V. Load regulation is 8 mV. The voltage regulation accuracy of this product is 3 %. Input bias current of 17 uA This product has a 28 uA of 7 mA, making it ideal for low-power applications. The 0.035 V at 50 mA. The maximum 85 mV is 360 mV. This product's 0.04 % / V is 0.01 %/V.

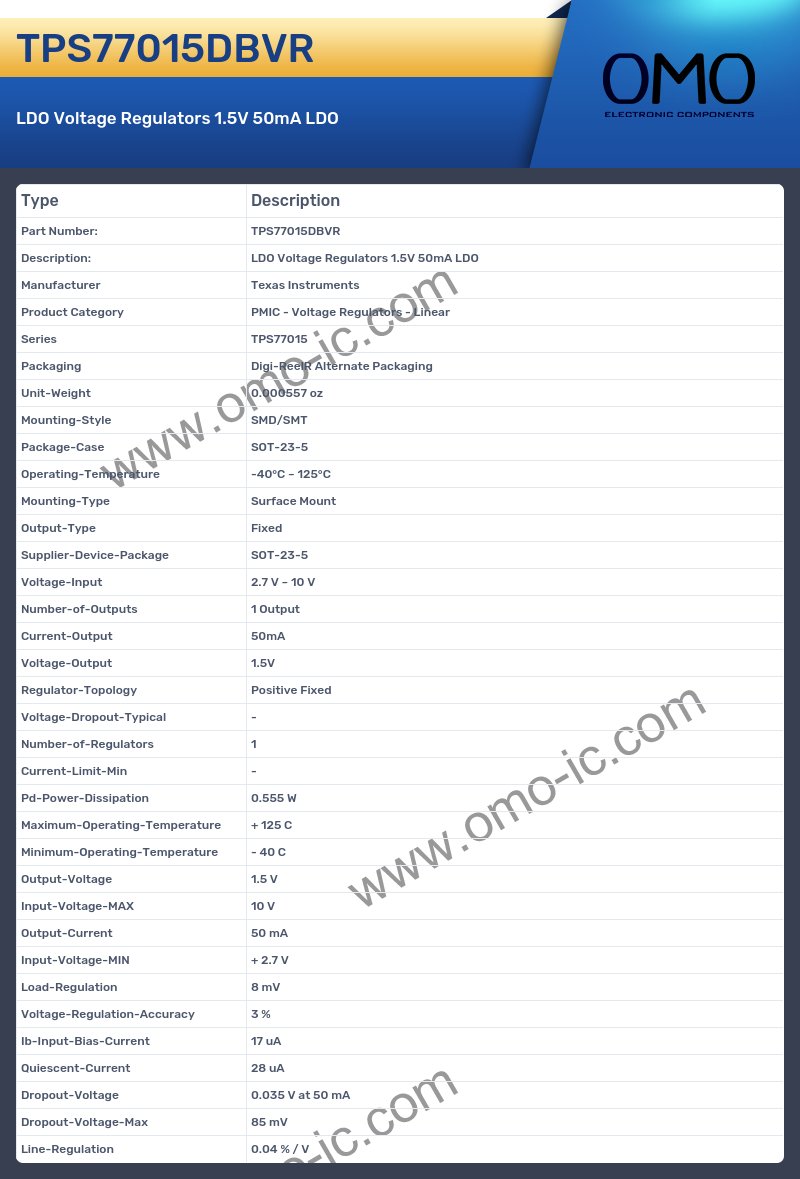

TPS77015DBVR Image

TPS77015DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS77015
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input 2.7 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 50mA
• Voltage-Output 1.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.555 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V
• Input-Voltage-MAX 10 V
• Output-Current 50 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 8 mV
• Voltage-Regulation-Accuracy 3 %
• Ib-Input-Bias-Current 17 uA
• Quiescent-Current 28 uA
• Dropout-Voltage 0.035 V at 50 mA
• Dropout-Voltage-Max 85 mV
• Line-Regulation 0.04 % / V
