TPS77301DGKR

TPS77301DGKR Overview

Product belongs to the TPS77301 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000670 oz SMD/SMT Mounting-Style VSSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-VSSOP 2.7 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 0.412 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V to 5.5 V Maximum Input Voltage: 10 V Output current: 250 mA The product's + 2.7 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 92 uA This product has a 125 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.1834 V . The 0.125 V at 250 mA. This product's 0.005 % / V is 0.01 %/V.

TPS77301DGKR Image

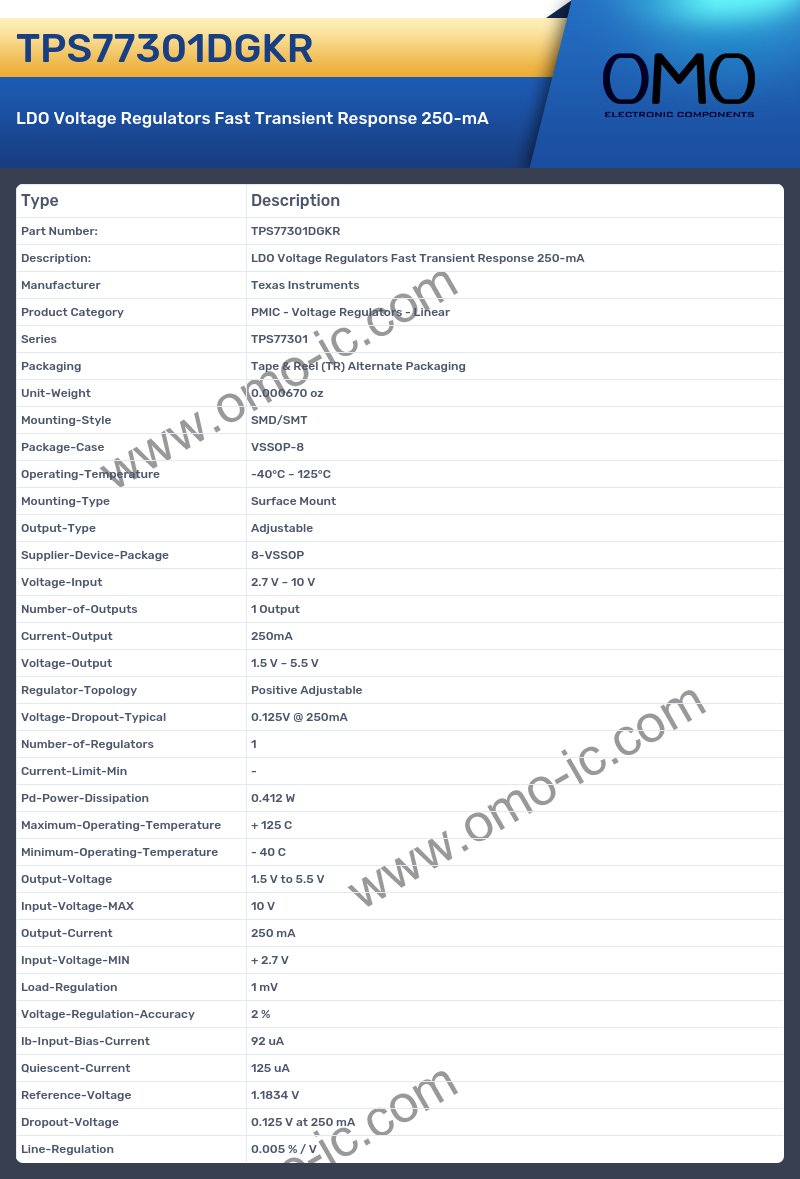

TPS77301DGKR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS77301
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000670 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-VSSOP
• Voltage-Input 2.7 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 250mA
• Voltage-Output 1.5 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.125V @ 250mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.412 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V to 5.5 V
• Input-Voltage-MAX 10 V
• Output-Current 250 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 92 uA
• Quiescent-Current 125 uA
• Reference-Voltage 1.1834 V
• Dropout-Voltage 0.125 V at 250 mA
• Line-Regulation 0.005 % / V
