TS3USB221RSERG4

TS3USB221RSERG4 Overview

Product belongs to the TS3USB221 series. This product is categorized as USB 2.0 Multiplexers/Demultiplexers Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000247 oz SMD/SMT Mounting-Style UQFN-10 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is USB Switch. Supplier device package: 10-UQFN (2.0x1.5) - is 8. Voltage supply source: Analog and digital Single Supply Configuration 2 x 1 Circuit type: 2 x 2:1 6 Ohm maximum on-state resistance Voltage supply range: 2.5 V ~ 3.3 V This product has a 30μA of 200μA. The - 1.1 GHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V supply voltage for reliable performance. 30 uA is 92 nA. The TS3USB221EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.3 V Max on-resistance of 6 Ohms Maximum off time: 23 ns 2 Switch switch functionality Maximum on-time: 50 ns

TS3USB221RSERG4 Image

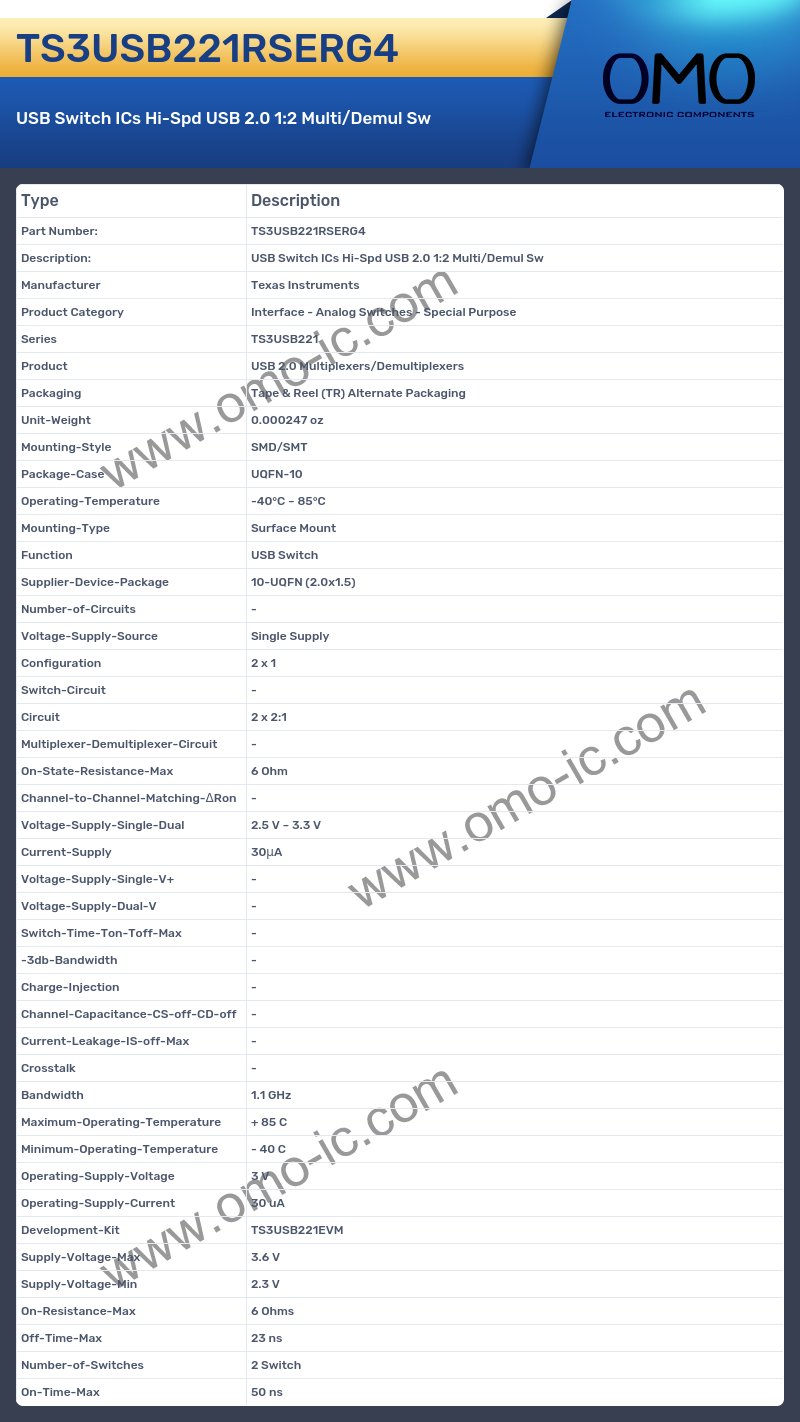

TS3USB221RSERG4 Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches - Special Purpose
• Series TS3USB221
• Product USB 2.0 Multiplexers/Demultiplexers
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000247 oz
• Mounting-Style SMD/SMT
• Package-Case UQFN-10
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function USB Switch
• Supplier-Device-Package 10-UQFN (2.0x1.5)
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 2 x 1
• Switch-Circuit -
• Circuit 2 x 2:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 6 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 2.5 V ~ 3.3 V
• Current-Supply 30μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 1.1 GHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V
• Operating-Supply-Current 30 uA
• Development-Kit TS3USB221EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.3 V
• On-Resistance-Max 6 Ohms
• Off-Time-Max 23 ns
• Number-of-Switches 2 Switch
• On-Time-Max 50 ns
