TS514AIDT

TS514AIDT Overview

Product belongs to the TS514 series. This product is categorized as Precision Amplifiers Reel is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style Bipolar is the technology used. Number of channels: 4 Channel Power-off control: No Shutdown Power-off control: 400 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 0.5 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 6 V SO-14 Input bias current of 300 nA The 0.5 mV. 23 mA The CMRR-Common-Mode-Rejection-Ratio is 90 dB. The 18 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 100 dB voltage gain

TS514AIDT Image

TS514AIDT Specifications

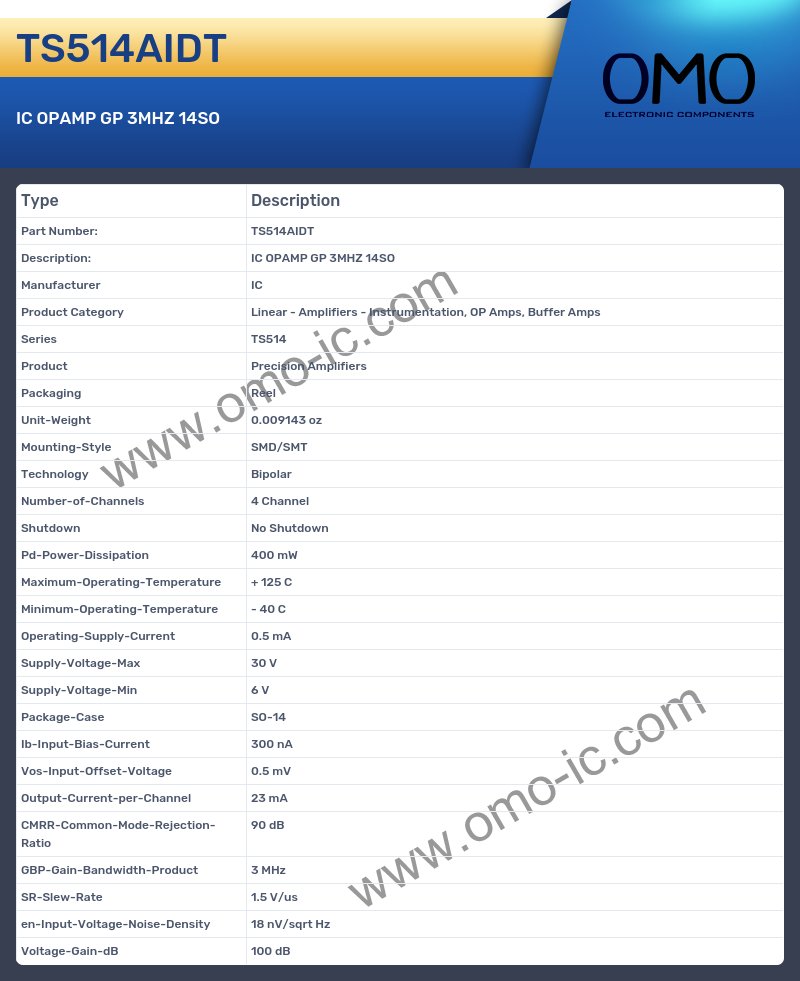

• Manufacturer IC
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TS514
• Product Precision Amplifiers
• Packaging Reel
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Technology Bipolar
• Number-of-Channels 4 Channel
• Shutdown No Shutdown
• Pd-Power-Dissipation 400 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 0.5 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 6 V
• Package-Case SO-14
• Ib-Input-Bias-Current 300 nA
• Vos-Input-Offset-Voltage 0.5 mV
• Output-Current-per-Channel 23 mA
• CMRR-Common-Mode-Rejection-Ratio 90 dB
• GBP-Gain-Bandwidth-Product 3 MHz
• SR-Slew-Rate 1.5 V/us
• en-Input-Voltage-Noise-Density 18 nV/sqrt Hz
• Voltage-Gain-dB 100 dB
