TSC2301IPAG

TSC2301IPAG Overview

Product belongs to the TSC2301 series. This product is categorized as Touch Screen Controllers Type: Resistive Touch Controller with Audio Tray is the packaging method for this product Weight of 0.009690 oz SMD/SMT Mounting-Style The 1 Keypad 1 TSC for this product is CMOS/TTL. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 4-Wire I2S Serial SPI interface type The TSC2301EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V TQFP-64 125 kS/s 48 kS/s Sampling Rate

TSC2301IPAG Image

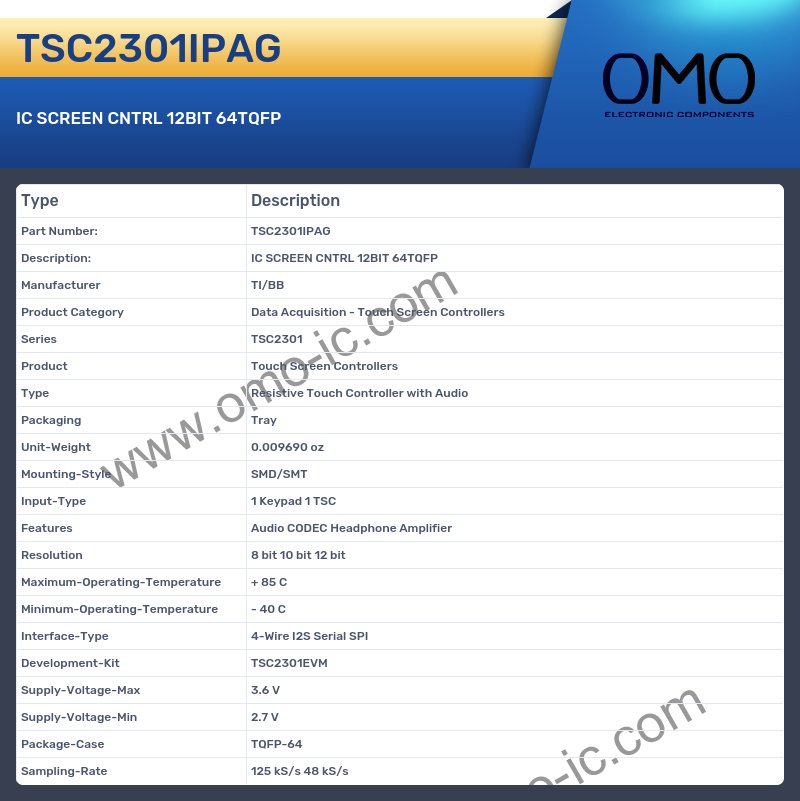

TSC2301IPAG Specifications

• Manufacturer TI/BB
• Product Category Data Acquisition - Touch Screen Controllers
• Series TSC2301
• Product Touch Screen Controllers
• Type Resistive Touch Controller with Audio
• Packaging Tray
• Unit-Weight 0.009690 oz
• Mounting-Style SMD/SMT
• Input-Type 1 Keypad 1 TSC
• Features Audio CODEC Headphone Amplifier
• Resolution 8 bit 10 bit 12 bit
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type 4-Wire I2S Serial SPI
• Development-Kit TSC2301EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Package-Case TQFP-64
• Sampling-Rate 125 kS/s 48 kS/s
