UC1843TD2

UC1843TD2 Overview

Product belongs to the UC1843-DIE series. Tube is the packaging method for this product Die Operational temperature range: - Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: Die Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 7.6 V ~ 30 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Frequency Control function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 0.97 The value of No is included as a product attribute. No enabled Serial Interfaces: -

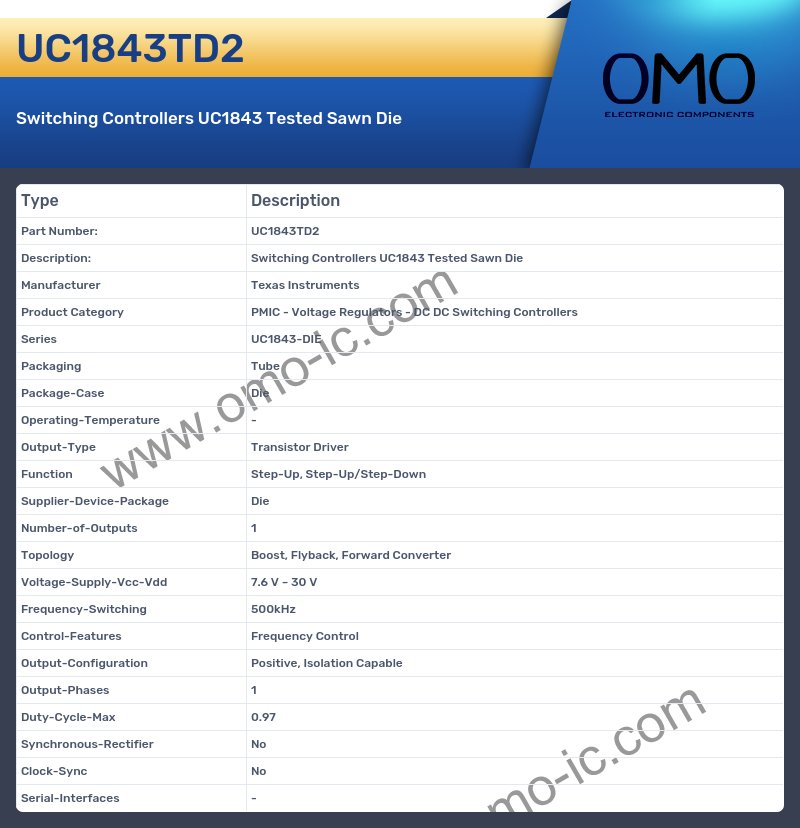

UC1843TD2 Image

UC1843TD2 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC1843-DIE
• Packaging Tube
• Package-Case Die
• Operating-Temperature -
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package Die
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 7.6 V ~ 30 V
• Frequency-Switching 500kHz
• Control-Features Frequency Control
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 0.97
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
