UC2844D8TR

UC2844D8TR Overview

Product belongs to the UC2844 series. This product is categorized as Switching Controllers Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Power-off control: Yes The product's Non-Isolated is non-isolated. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 30 V supply voltage for reliable performance. Output voltage: 5 V 11 mA is 92 nA. Input Voltage Range: - 300 mV to + 6.3 V Output current: 6 mA Switching frequency is 500 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 50 %

UC2844D8TR Image

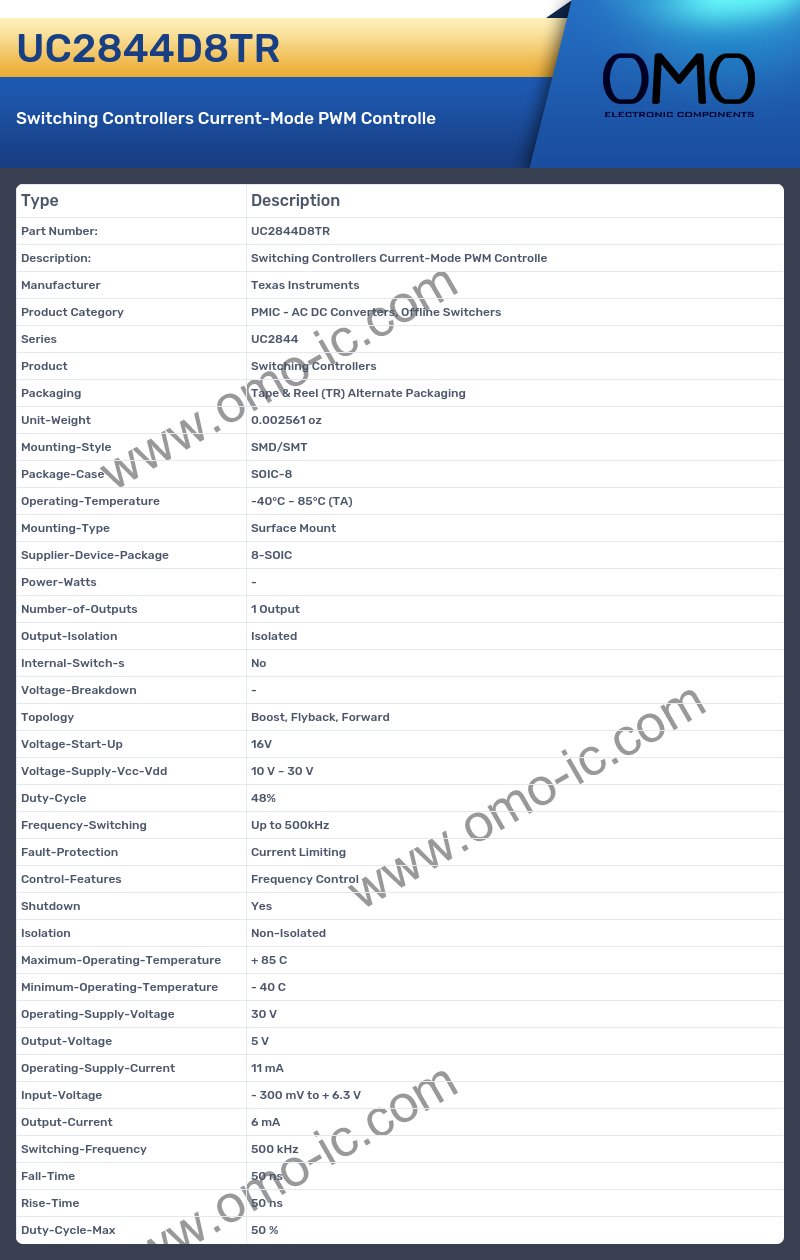

UC2844D8TR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UC2844
• Product Switching Controllers
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SOIC
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 16V
• Voltage-Supply-Vcc-Vdd 10 V ~ 30 V
• Duty-Cycle 48%
• Frequency-Switching Up to 500kHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control
• Shutdown Yes
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 30 V
• Output-Voltage 5 V
• Operating-Supply-Current 11 mA
• Input-Voltage - 300 mV to + 6.3 V
• Output-Current 6 mA
• Switching-Frequency 500 kHz
• Fall-Time 50 ns
• Rise-Time 50 ns
• Duty-Cycle-Max 50 %
