UC2844N

UC2844N Overview

Product belongs to the UC2844 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.018646 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Supplier device package: 8-PDIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 50 %

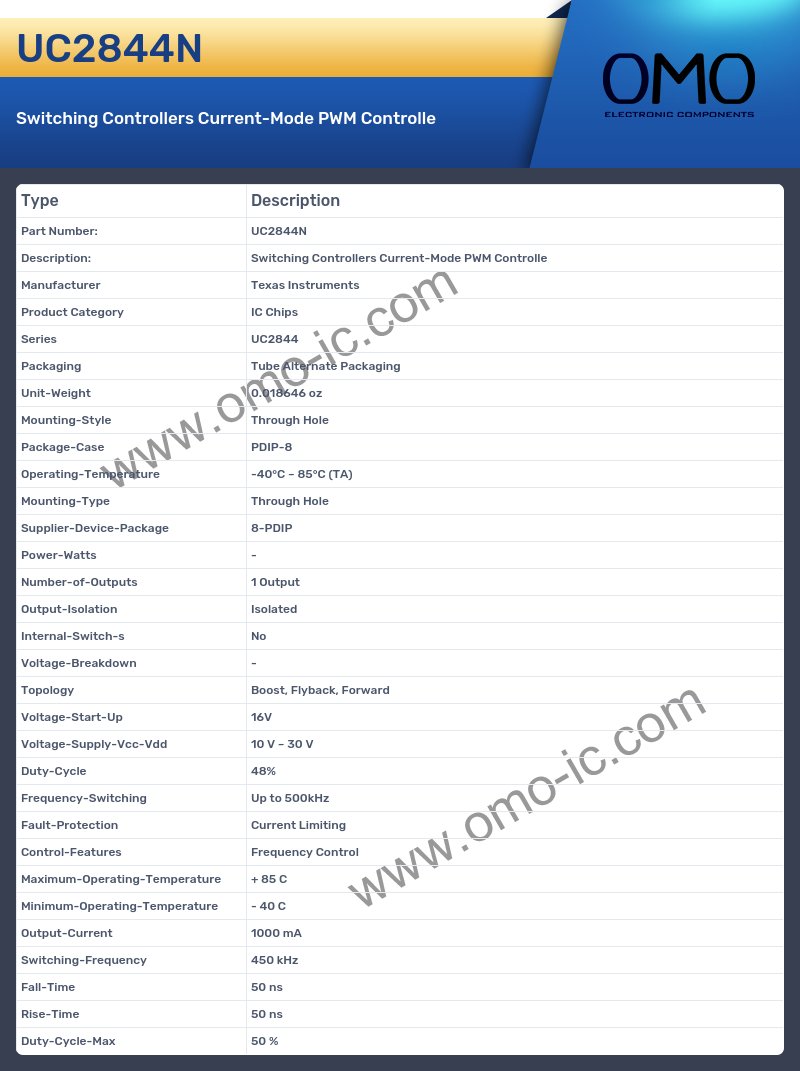

UC2844N Image

UC2844N Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series UC2844
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018646 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Supplier-Device-Package 8-PDIP
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 16V
• Voltage-Supply-Vcc-Vdd 10 V ~ 30 V
• Duty-Cycle 48%
• Frequency-Switching Up to 500kHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 1000 mA
• Switching-Frequency 450 kHz
• Fall-Time 50 ns
• Rise-Time 50 ns
• Duty-Cycle-Max 50 %
