UC3544N

UC3544N Overview

Product belongs to the UC3544 series. Type: Voltage Supervisory Tube is the packaging method for this product Weight of 0.042544 oz Through Hole Mounting-Style PDIP-18 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: Open Collector / Drain & SCR Trigger Versatile Power Supply, Supervisor applications for maximum usability Voltage Supply Range: - Supplier device package: 18-PDIP 4.5 V ~ 40 V voltage input This product has a 7mA of 200μA. Power-off control: 1000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 7000 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 40 V Minimum supply voltage is 4.5 V This product includes No Watchdog This product's 2.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The product's Programmable is 200 ms. The 2.6 V is 2.35 V. 2.4 V is set to 2.29 V.

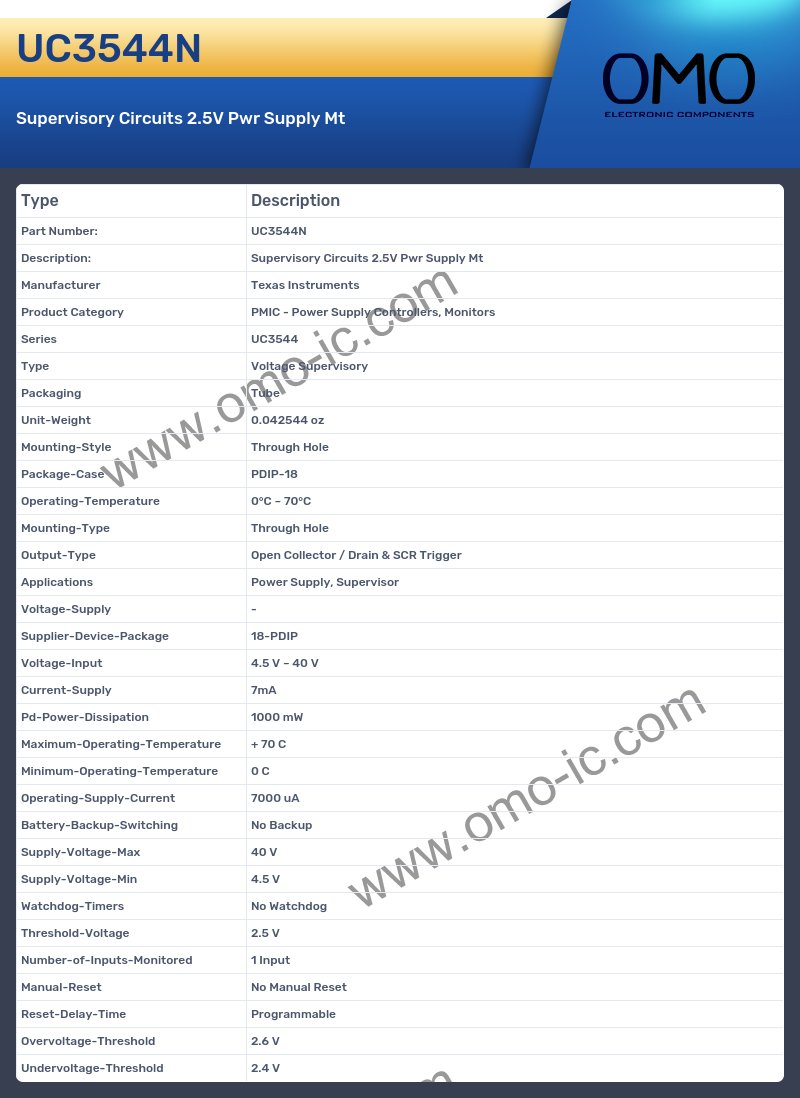

UC3544N Image

UC3544N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Supply Controllers, Monitors
• Series UC3544
• Type Voltage Supervisory
• Packaging Tube
• Unit-Weight 0.042544 oz
• Mounting-Style Through Hole
• Package-Case PDIP-18
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type Open Collector / Drain & SCR Trigger
• Applications Power Supply, Supervisor
• Voltage-Supply -
• Supplier-Device-Package 18-PDIP
• Voltage-Input 4.5 V ~ 40 V
• Current-Supply 7mA
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 7000 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 4.5 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 2.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Reset-Delay-Time Programmable
• Overvoltage-Threshold 2.6 V
• Undervoltage-Threshold 2.4 V
