UC3717ANG4

UC3717ANG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-DIP (0.300", 7.62mm) Bipolar is the technology used. Operational temperature range: 0°C ~ 150°C (TJ) Through Hole mounting type Versatile General Purpose, Stepper Motors applications for maximum usability Interface: Logic Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-PDIP Current-Output-Channel is 1A The Half Bridge (2). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's - is 4A. Voltage-Load range is 10 V ~ 46 V.

UC3717ANG4 Image

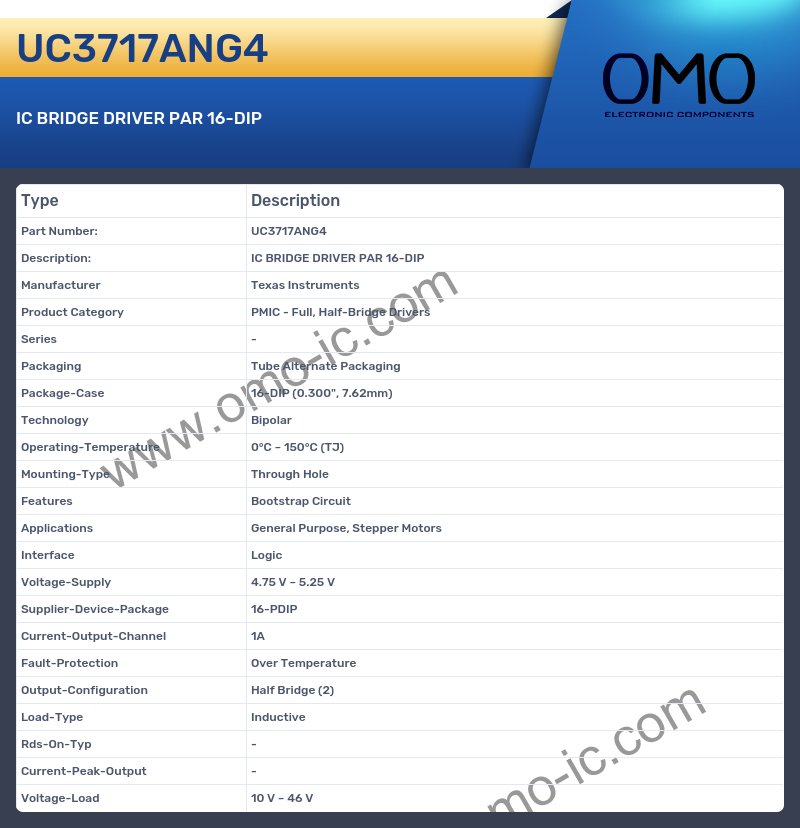

UC3717ANG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-DIP (0.300", 7.62mm)
• Technology Bipolar
• Operating-Temperature 0°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Features Bootstrap Circuit
• Applications General Purpose, Stepper Motors
• Interface Logic
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-PDIP
• Current-Output-Channel 1A
• Fault-Protection Over Temperature
• Output-Configuration Half Bridge (2)
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output -
• Voltage-Load 10 V ~ 46 V
