UCC25702DG4

UCC25702DG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 14-SOICN Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 8.8 V ~ 15 V This product features 'Frequency-Switching' at 100kHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Sequencing, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 0.99 The value of No is included as a product attribute. Yes enabled Serial Interfaces: -

UCC25702DG4 Image

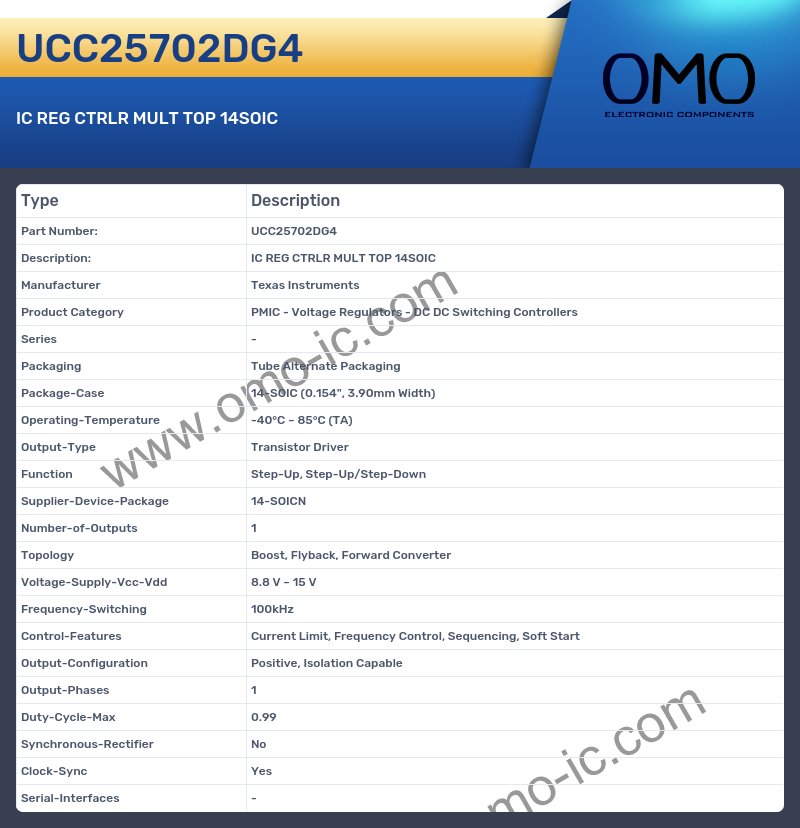

UCC25702DG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 14-SOICN
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.8 V ~ 15 V
• Frequency-Switching 100kHz
• Control-Features Current Limit, Frequency Control, Sequencing, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 0.99
• Synchronous-Rectifier No
• Clock-Sync Yes
• Serial-Interfaces -
