UCC25705P

UCC25705P Overview

Product belongs to the UCC25705 series. This product is categorized as Switching Controllers Tube Alternate Packaging is the packaging method for this product Weight of 0.018455 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-PDIP Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 8.2 V ~ 15 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Current Limit function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 93 % The value of No is included as a product attribute. No enabled Serial Interfaces: - The product's Isolated Non-Isolated is non-isolated. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 15 V supply voltage for reliable performance. 4.2 mA is 92 nA. Input Voltage Range: 15 V Output current: 20 mA Switching frequency is 4 MHz This product has a 10 ns of 16 ns. This product has a 10 ns of 16 ns.

UCC25705P Image

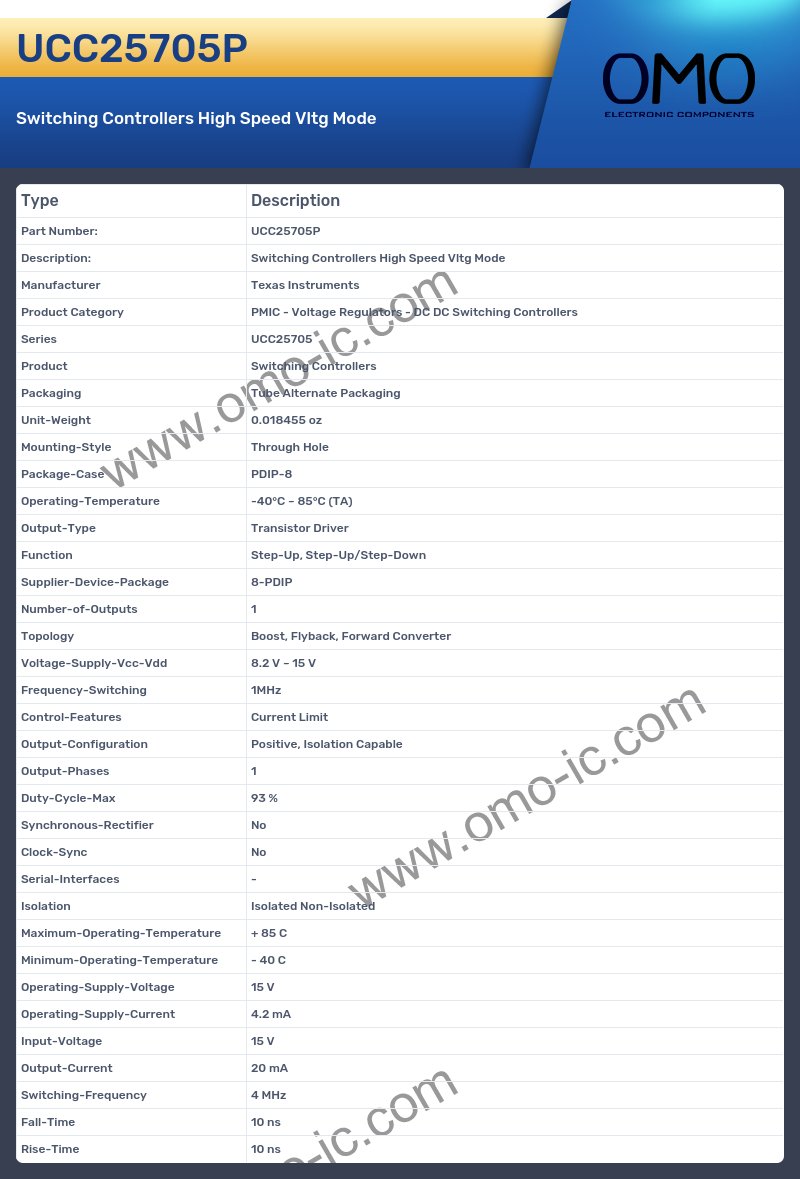

UCC25705P Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC25705
• Product Switching Controllers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018455 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-PDIP
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.2 V ~ 15 V
• Frequency-Switching 1MHz
• Control-Features Current Limit
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 93 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Isolation Isolated Non-Isolated
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 15 V
• Operating-Supply-Current 4.2 mA
• Input-Voltage 15 V
• Output-Current 20 mA
• Switching-Frequency 4 MHz
• Fall-Time 10 ns
• Rise-Time 10 ns
