| Mfr. #: | UCC2805QDRQ1 |
|---|---|
| 제조사: | Texas Instruments |
| 설명: | Switching Controllers Auto Cat Lo-Pwr BiC MOS Current-Mode PWM |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | UCC2805QDRQ1 데이터 시트 |

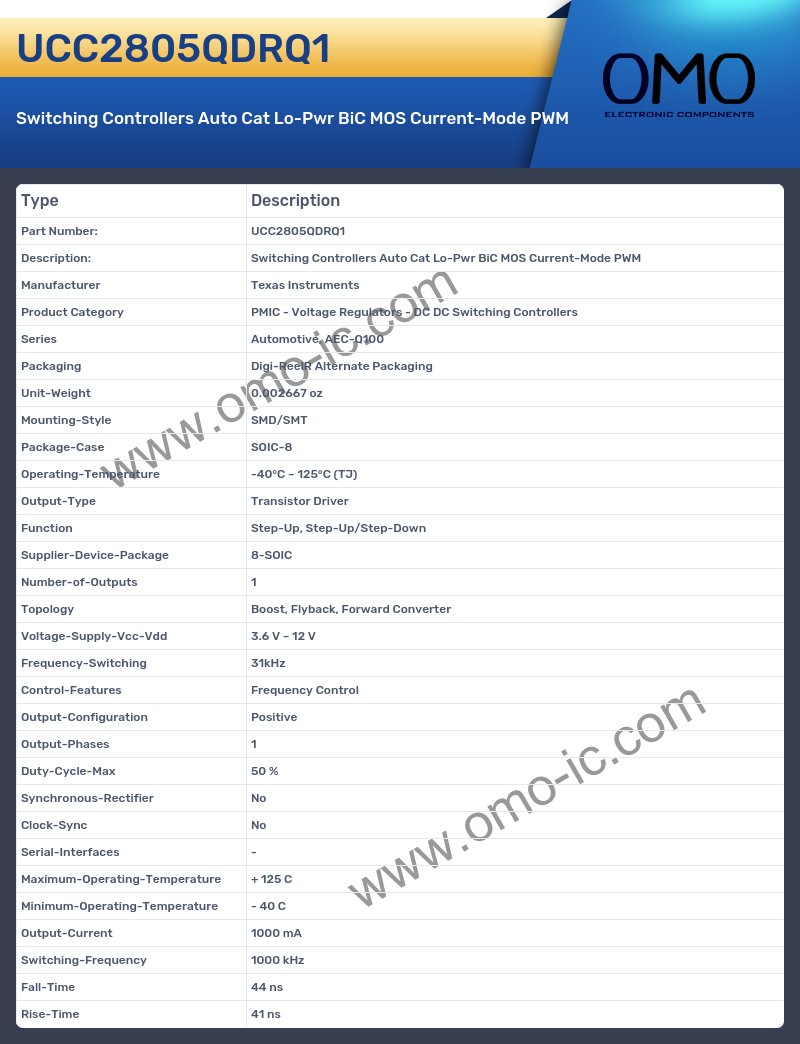

Product belongs to the Automotive, AEC-Q100 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002667 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 3.6 V ~ 12 V This product features 'Frequency-Switching' at 31kHz for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns.
