UCC2809P-1

UCC2809P-1 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 8-VSSOP Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 8 V ~ 19 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start function.

UCC2809P-1 Image

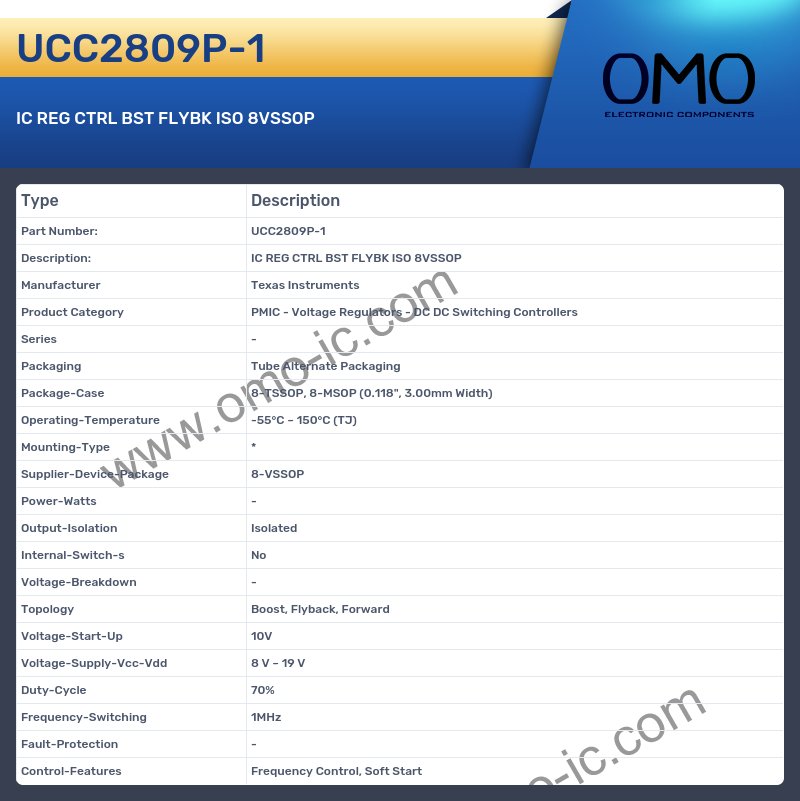

UCC2809P-1 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 8-VSSOP
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 10V
• Voltage-Supply-Vcc-Vdd 8 V ~ 19 V
• Duty-Cycle 70%
• Frequency-Switching 1MHz
• Fault-Protection -
• Control-Features Frequency Control, Soft Start
