UCC2813D-0 Overview

Product belongs to the UCC2813-0 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 6.9 V ~ 12 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 10 V supply voltage for reliable performance. Output voltage: 5 V 0.5 mA is 92 nA. Output current: 1 A Switching frequency is 1000 kHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns.

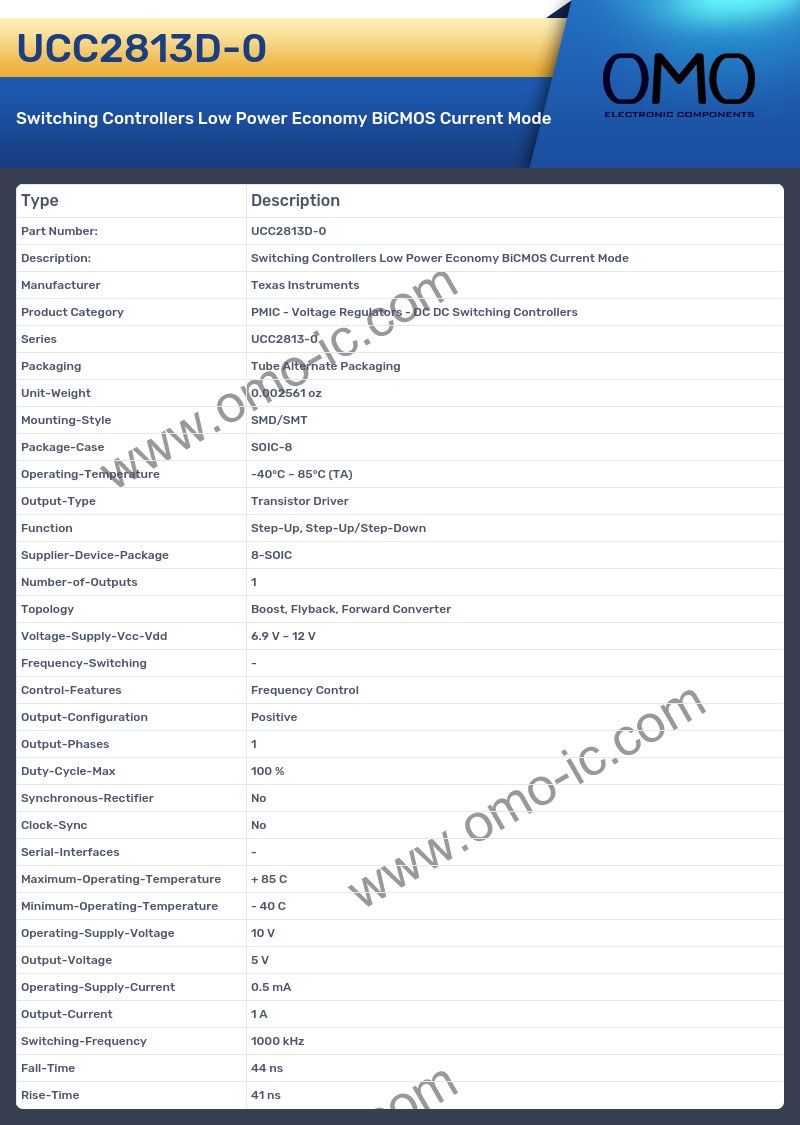

UCC2813D-0 Image

UCC2813D-0 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2813-0
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 6.9 V ~ 12 V
• Frequency-Switching -
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 10 V
• Output-Voltage 5 V
• Operating-Supply-Current 0.5 mA
• Output-Current 1 A
• Switching-Frequency 1000 kHz
• Fall-Time 44 ns
• Rise-Time 41 ns
