UCC28251PW

UCC28251PW Overview

Product belongs to the UCC28251 series. This product is categorized as Switching Controllers Tube Alternate Packaging is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: PWM Signal Product function is Step-Up/Step-Down. Supplier device package: 20-TSSOP Number-of-Outputs: 2 Topology: Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 4.7 V ~ 17 V This product features 'Frequency-Switching' at 42kHz ~ 945kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Power-off control: Yes The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4.7 V to 17 V supply voltage for reliable performance. Output voltage: 3.25 V 2 mA is 92 nA. Switching frequency is 1 MHz This product has a 8 ns of 16 ns. This product has a 8 ns of 16 ns.

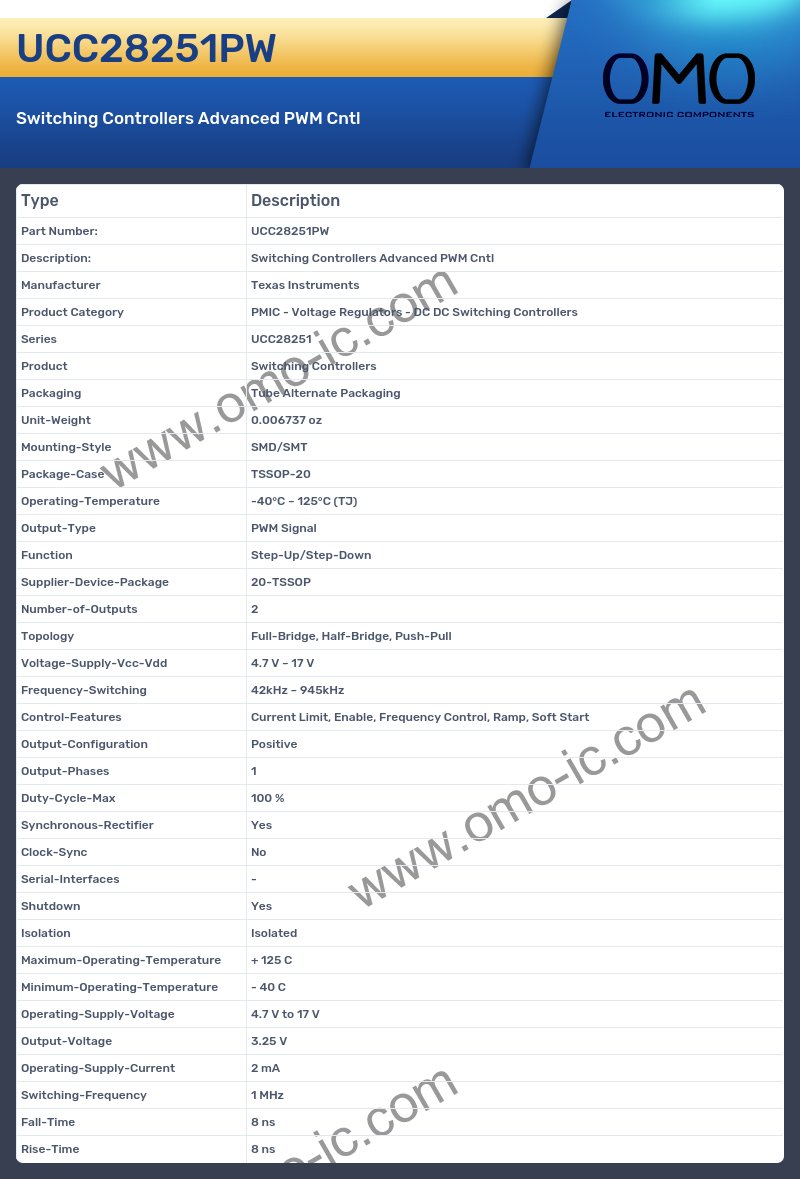

UCC28251PW Image

UCC28251PW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC28251
• Product Switching Controllers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006737 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type PWM Signal
• Function Step-Up/Step-Down
• Supplier-Device-Package 20-TSSOP
• Number-of-Outputs 2
• Topology Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 4.7 V ~ 17 V
• Frequency-Switching 42kHz ~ 945kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Shutdown Yes
• Isolation Isolated
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.7 V to 17 V
• Output-Voltage 3.25 V
• Operating-Supply-Current 2 mA
• Switching-Frequency 1 MHz
• Fall-Time 8 ns
• Rise-Time 8 ns
