UCC28251RGPT

UCC28251RGPT Overview

Product belongs to the UCC28251 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style VQFN-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: PWM Signal Product function is Step-Up/Step-Down. Supplier device package: 20-QFN (4x4) Number-of-Outputs: 2 Topology: Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 4.7 V ~ 17 V This product features 'Frequency-Switching' at 42kHz ~ 945kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output voltage: 3.25 V 2 mA is 92 nA. Output current: 25 mA Switching frequency is 40 kHz to 1000 kHz This product has a 8 ns of 16 ns. This product has a 8 ns of 16 ns.

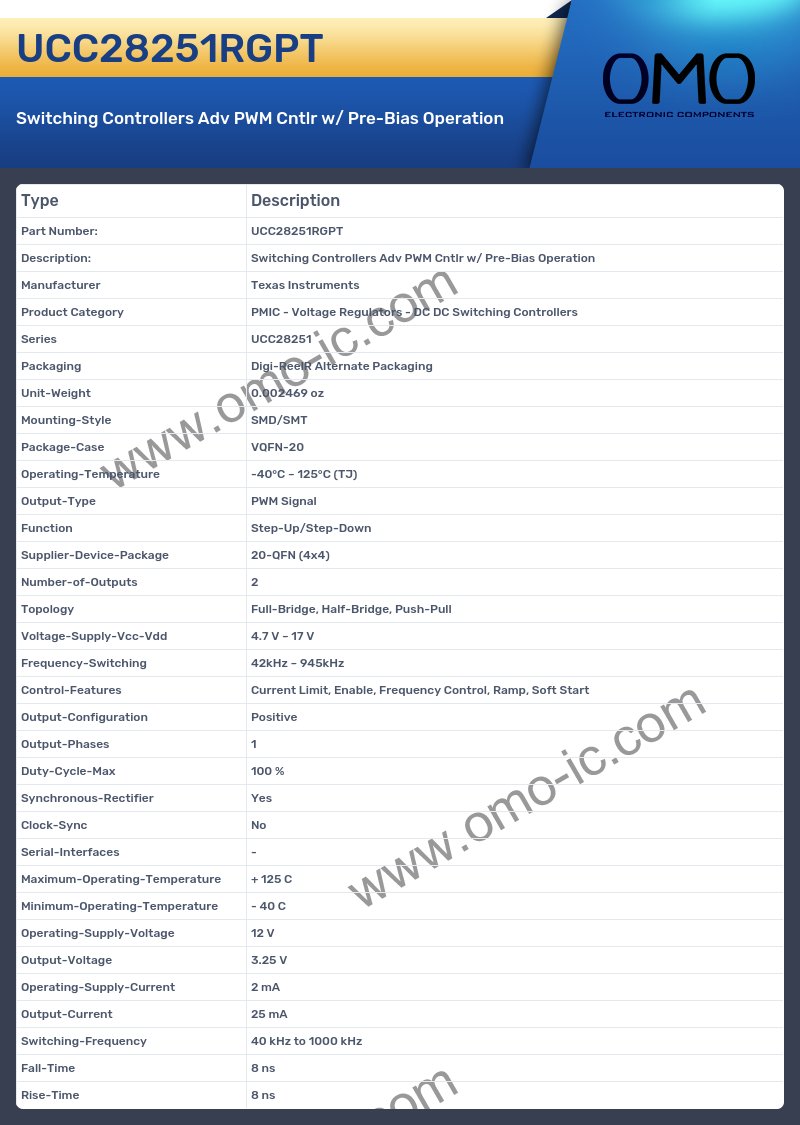

UCC28251RGPT Image

UCC28251RGPT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC28251
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002469 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type PWM Signal
• Function Step-Up/Step-Down
• Supplier-Device-Package 20-QFN (4x4)
• Number-of-Outputs 2
• Topology Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 4.7 V ~ 17 V
• Frequency-Switching 42kHz ~ 945kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Output-Voltage 3.25 V
• Operating-Supply-Current 2 mA
• Output-Current 25 mA
• Switching-Frequency 40 kHz to 1000 kHz
• Fall-Time 8 ns
• Rise-Time 8 ns
