UCC2891DR

UCC2891DR Overview

Product belongs to the UCC2891 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 1 Topology: Flyback, Forward Converter feedback Supply Voltage: 8.5 V ~ 16 V This product features 'Frequency-Switching' at 250kHz for optimal performance. The Control-Features include Current Limit, Enable, On Time Control, Ramp, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 73 % The value of No is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output current: 2000 mA Switching frequency is 1000 kHz This product has a 14 ns of 16 ns. This product has a 19 ns of 16 ns. The UCC2891EVM.

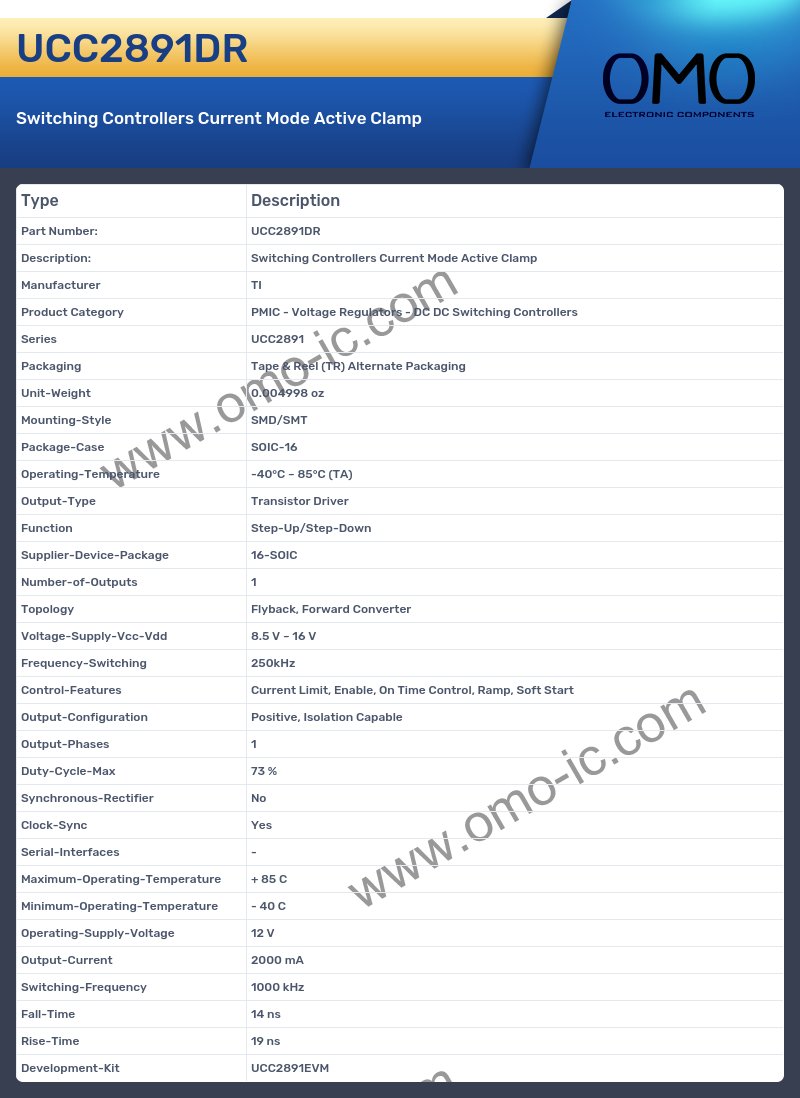

UCC2891DR Image

UCC2891DR Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2891
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 1
• Topology Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 16 V
• Frequency-Switching 250kHz
• Control-Features Current Limit, Enable, On Time Control, Ramp, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 73 %
• Synchronous-Rectifier No
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Output-Current 2000 mA
• Switching-Frequency 1000 kHz
• Fall-Time 14 ns
• Rise-Time 19 ns
• Development-Kit UCC2891EVM
