UCC2897APW

UCC2897APW Overview

Product belongs to the UCC2897A series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002716 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 20-TSSOP Number-of-Outputs: 1 Topology: Flyback, Forward Converter feedback Supply Voltage: 8.5 V ~ 16 V This product features 'Frequency-Switching' at 250kHz for optimal performance. The Control-Features include Current Limit, Enable, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 74 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output voltage: 3 V Output current: 2000 mA Switching frequency is 1000 kHz This product has a 14 ns of 16 ns. This product has a 19 ns of 16 ns. The UCC2897AEVM.

UCC2897APW Image

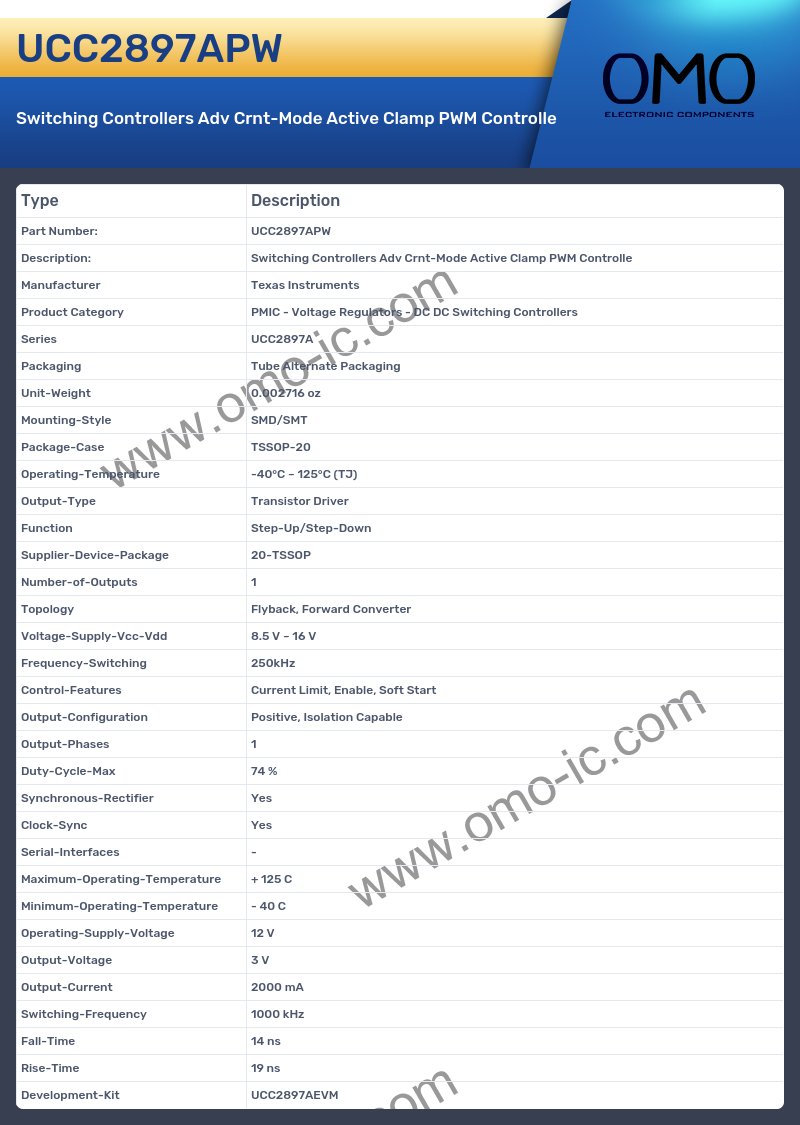

UCC2897APW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2897A
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002716 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 20-TSSOP
• Number-of-Outputs 1
• Topology Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 16 V
• Frequency-Switching 250kHz
• Control-Features Current Limit, Enable, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 74 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Output-Voltage 3 V
• Output-Current 2000 mA
• Switching-Frequency 1000 kHz
• Fall-Time 14 ns
• Rise-Time 19 ns
• Development-Kit UCC2897AEVM
