UCC2960D

UCC2960D Overview

Product belongs to the UCC2960 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: - feedback Supply Voltage: 8 V ~ 19 V This product features 'Frequency-Switching' at Up to 400kHz for optimal performance. The Control-Features include Frequency Control, Soft Start function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switching frequency is 400 kHz Maximum duty cycle of 72 %

UCC2960D Image

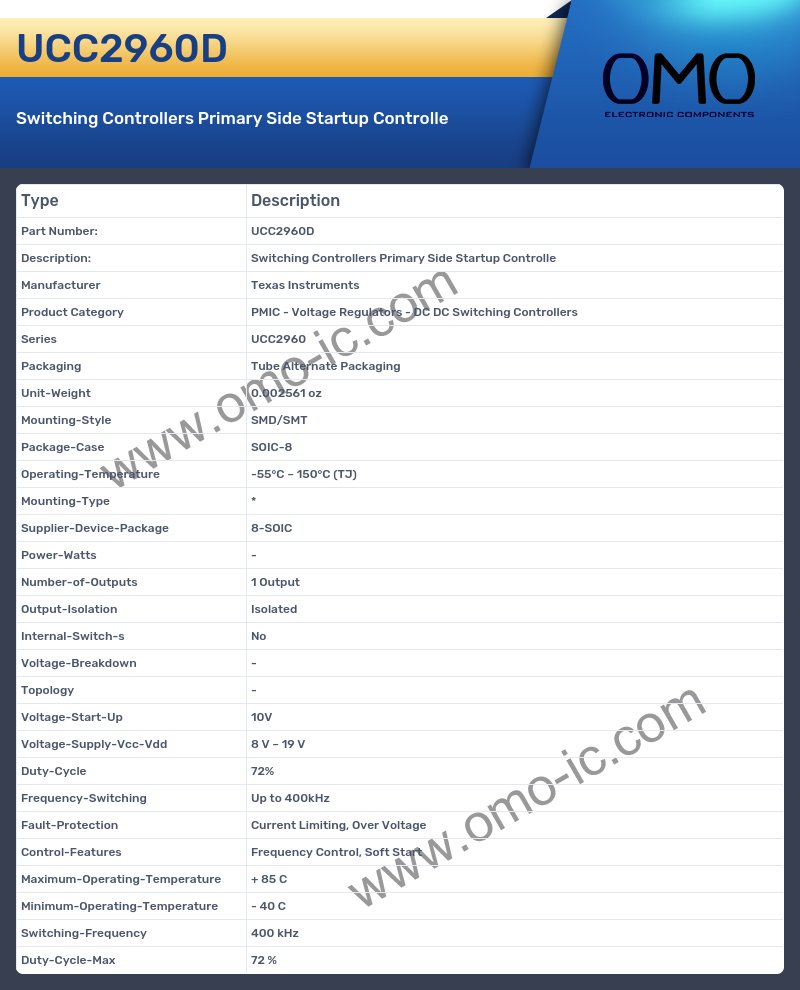

UCC2960D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2960
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 8-SOIC
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology -
• Voltage-Start-Up 10V
• Voltage-Supply-Vcc-Vdd 8 V ~ 19 V
• Duty-Cycle 72%
• Frequency-Switching Up to 400kHz
• Fault-Protection Current Limiting, Over Voltage
• Control-Features Frequency Control, Soft Start
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switching-Frequency 400 kHz
• Duty-Cycle-Max 72 %
