UCC3580D-1G4

UCC3580D-1G4 Overview

Product belongs to the - series. Tube is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Forward Converter feedback Supply Voltage: * This product features 'Frequency-Switching' at 400kHz for optimal performance. The Control-Features include Enable, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.66 The value of No is included as a product attribute. No enabled Serial Interfaces: -

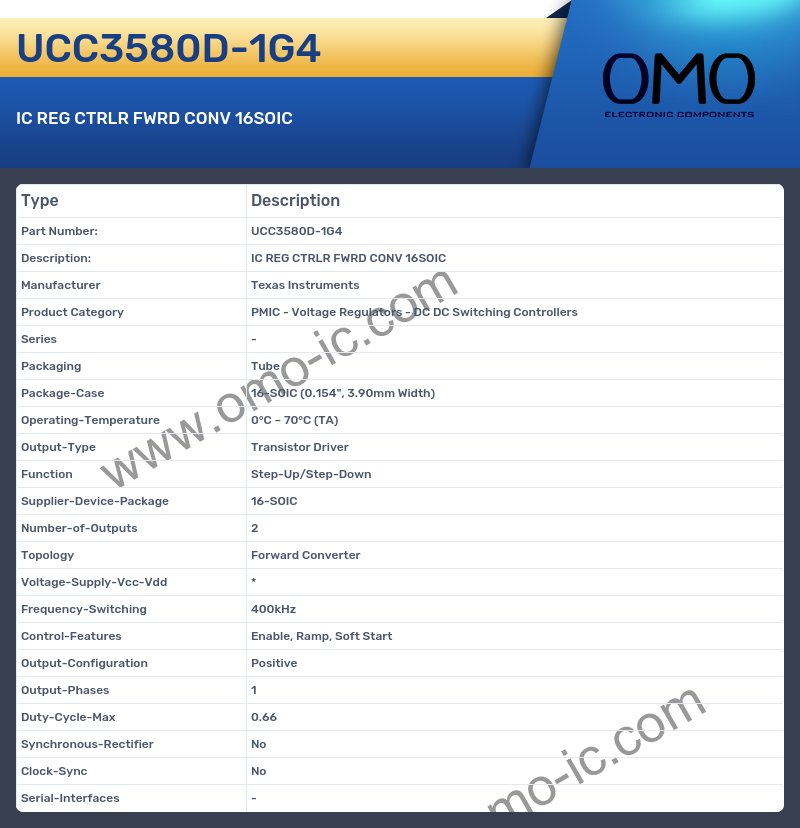

UCC3580D-1G4 Image

UCC3580D-1G4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Forward Converter
• Voltage-Supply-Vcc-Vdd *
• Frequency-Switching 400kHz
• Control-Features Enable, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.66
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
