UCC3810DWG4

UCC3810DWG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C (TA) * mounting type Supplier device package: 16-SOIC Output-Isolation: Isolated This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 11 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control, Sync function.

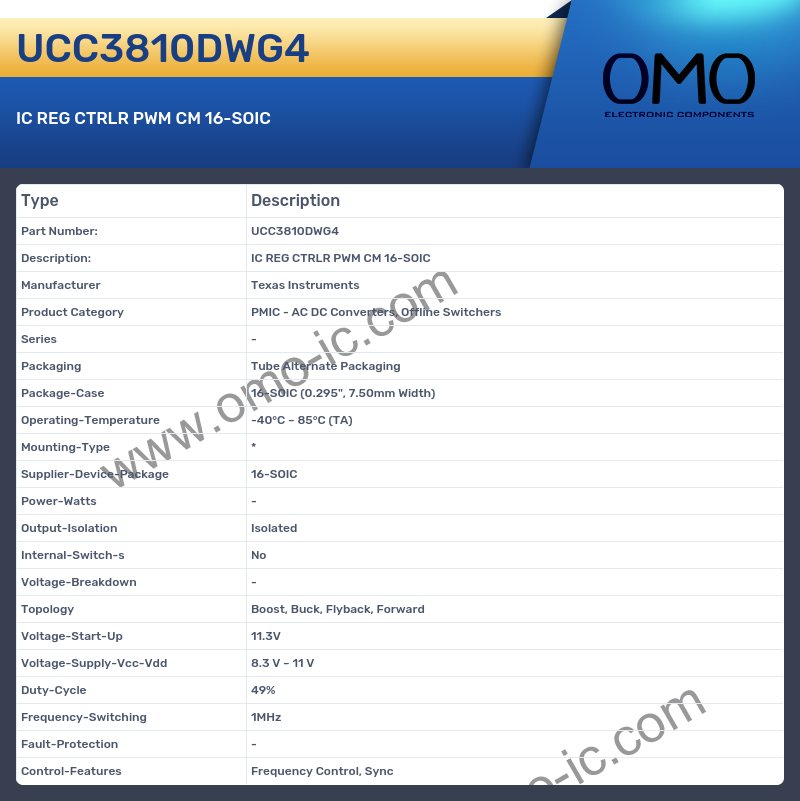

UCC3810DWG4 Image

UCC3810DWG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type *
• Supplier-Device-Package 16-SOIC
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Buck, Flyback, Forward
• Voltage-Start-Up 11.3V
• Voltage-Supply-Vcc-Vdd 8.3 V ~ 11 V
• Duty-Cycle 49%
• Frequency-Switching 1MHz
• Fault-Protection -
• Control-Features Frequency Control, Sync
