UCC383T-ADJ

UCC383T-ADJ Overview

Product belongs to the UCC383-ADJ series. Tube is the packaging method for this product Weight of 0.068079 oz Through Hole Mounting-Style TO-220-5 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-220-5 2.8 V ~ 9 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.22 V ~ 8.5 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 1.22 V to 8.5 V Maximum Input Voltage: 9 V Output current: 3 A The product's + 2.8 V is 5.1 V. Load regulation is 5 mV. The voltage regulation accuracy of this product is 2.5 %. Input bias current of 400 uA This product has a 650 uA of 7 mA, making it ideal for low-power applications. The 0.4 V at 3 A. The maximum 600 mV at 3 A is 360 mV. This product's 3 mV is 0.01 %/V.

UCC383T-ADJ Image

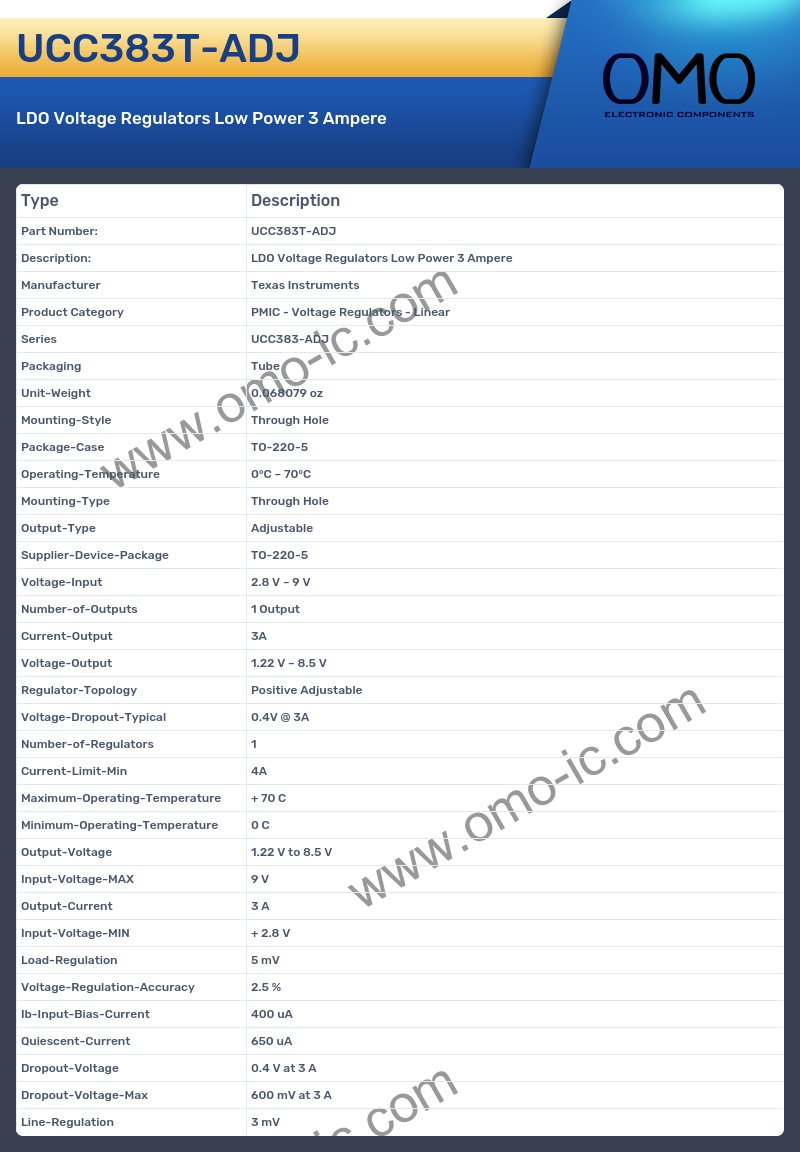

UCC383T-ADJ Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series UCC383-ADJ
• Packaging Tube
• Unit-Weight 0.068079 oz
• Mounting-Style Through Hole
• Package-Case TO-220-5
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package TO-220-5
• Voltage-Input 2.8 V ~ 9 V
• Number-of-Outputs 1 Output
• Current-Output 3A
• Voltage-Output 1.22 V ~ 8.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.4V @ 3A
• Number-of-Regulators 1
• Current-Limit-Min 4A
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 1.22 V to 8.5 V
• Input-Voltage-MAX 9 V
• Output-Current 3 A
• Input-Voltage-MIN + 2.8 V
• Load-Regulation 5 mV
• Voltage-Regulation-Accuracy 2.5 %
• Ib-Input-Bias-Current 400 uA
• Quiescent-Current 650 uA
• Dropout-Voltage 0.4 V at 3 A
• Dropout-Voltage-Max 600 mV at 3 A
• Line-Regulation 3 mV
