UCD7242RSJT

UCD7242RSJT Overview

Product belongs to the UCD7242 series. This product is categorized as Half-Bridge Drivers Type: High Side Low Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002547 oz SMD/SMT Mounting-Style VQFN-32 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: - Product function is Step-Down. Supplier device package: 32-QFN (6x6) Number-of-Outputs: 2 Topology: Buck feedback This product features 'Frequency-Switching' at 300kHz ~ 2MHz for optimal performance. The Positive. Minimum fixed output voltage is - . The value of Yes is included as a product attribute. The minimum input voltage is 4.75V. The 18V. Power-off control: 5.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 0.3 V to + 3.6 V 6 mA is 92 nA. Output current: 10 A The UCD9224EVM-464. Maximum supply voltage of 18 V Minimum supply voltage is 2.2 V Number-of-Drivers: 2 Driver

UCD7242RSJT Image

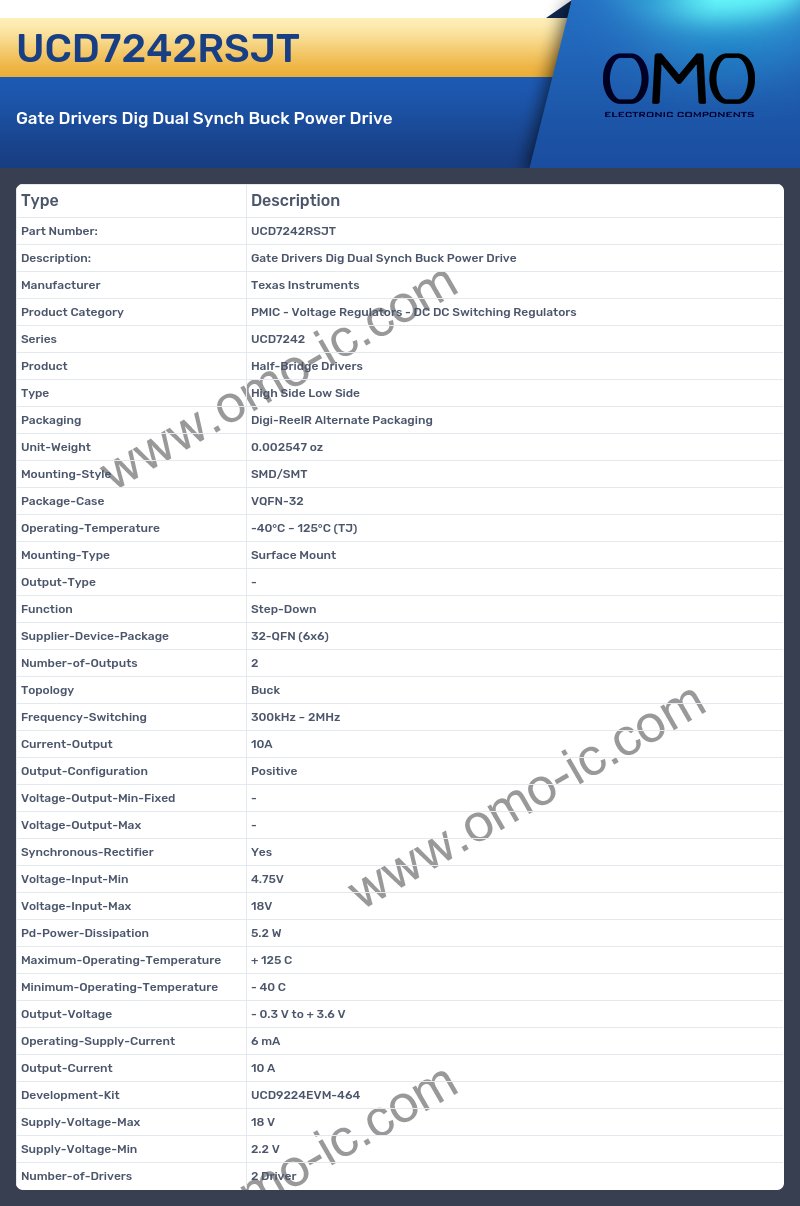

UCD7242RSJT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series UCD7242
• Product Half-Bridge Drivers
• Type High Side Low Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002547 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-32
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type -
• Function Step-Down
• Supplier-Device-Package 32-QFN (6x6)
• Number-of-Outputs 2
• Topology Buck
• Frequency-Switching 300kHz ~ 2MHz
• Current-Output 10A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed -
• Voltage-Output-Max -
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.75V
• Voltage-Input-Max 18V
• Pd-Power-Dissipation 5.2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 0.3 V to + 3.6 V
• Operating-Supply-Current 6 mA
• Output-Current 10 A
• Development-Kit UCD9224EVM-464
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 2.2 V
• Number-of-Drivers 2 Driver
