ULN2064B

ULN2064B Overview

Product belongs to the ULN2064B series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style 16-PowerDIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 16-PowerDIP (20x7.10) Configuration Quad Transistor type: 4 NPN Darlington (Quad) Maximum current collector Ic is 1.75A . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.4V @ 2mA, 1.25A Power-off control: 4.3 W Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 1.75 A This product is capable of handling a 1.75 A continuous collector current.

ULN2064B Image

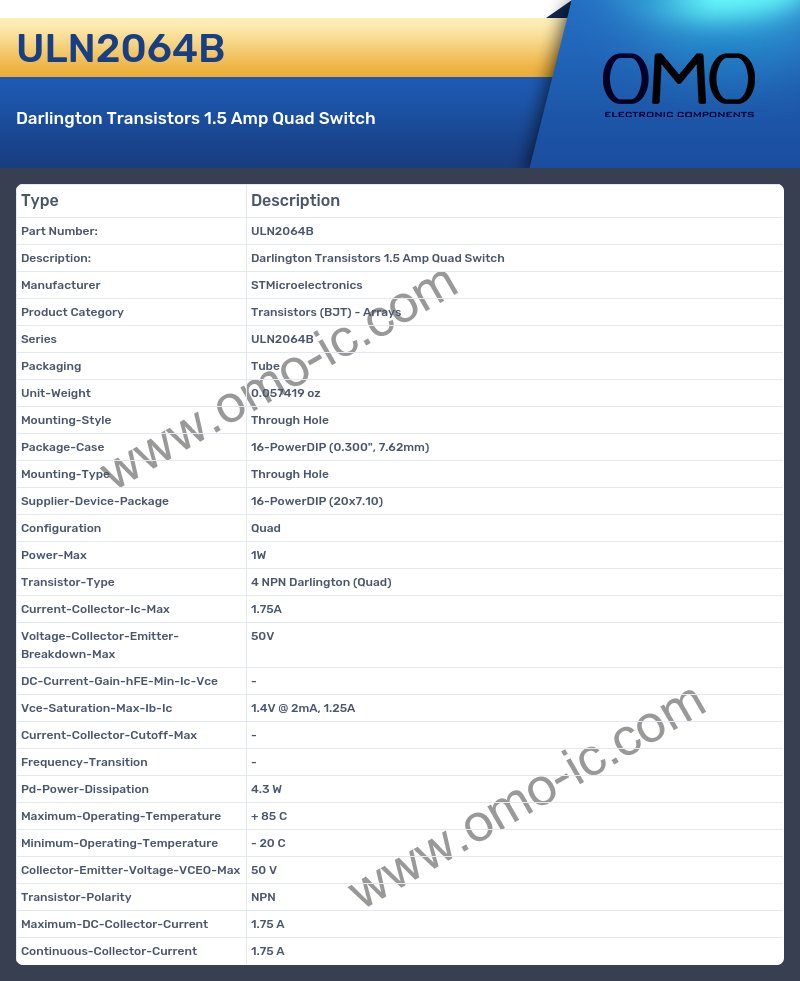

ULN2064B Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Arrays
• Series ULN2064B
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case 16-PowerDIP (0.300", 7.62mm)
• Mounting-Type Through Hole
• Supplier-Device-Package 16-PowerDIP (20x7.10)
• Configuration Quad
• Power-Max 1W
• Transistor-Type 4 NPN Darlington (Quad)
• Current-Collector-Ic-Max 1.75A
• Voltage-Collector-Emitter-Breakdown-Max 50V
• DC-Current-Gain-hFE-Min-Ic-Vce -
• Vce-Saturation-Max-Ib-Ic 1.4V @ 2mA, 1.25A
• Current-Collector-Cutoff-Max -
• Frequency-Transition -
• Pd-Power-Dissipation 4.3 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 20 C
• Collector-Emitter-Voltage-VCEO-Max 50 V
• Transistor-Polarity NPN
• Maximum-DC-Collector-Current 1.75 A
• Continuous-Collector-Current 1.75 A
