| Mfr. #: | ULN2069B |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | Darlington Transistors 1.5 Amp Quad Switch |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | ULN2069B 데이터 시트 |
Product belongs to the ULN2069B series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style 16-PowerDIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 16-PowerDIP (20x7.10) Configuration Quad Transistor type: 4 NPN Darlington (Quad) Maximum current collector Ic is 1.75A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.5V @ 2.25mA, 1.5A Power-off control: 4.3 W Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 80 V The transistor polarity is NPN. Max DC collector current: 1.75 A This product is capable of handling a 1.5 A continuous collector current.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

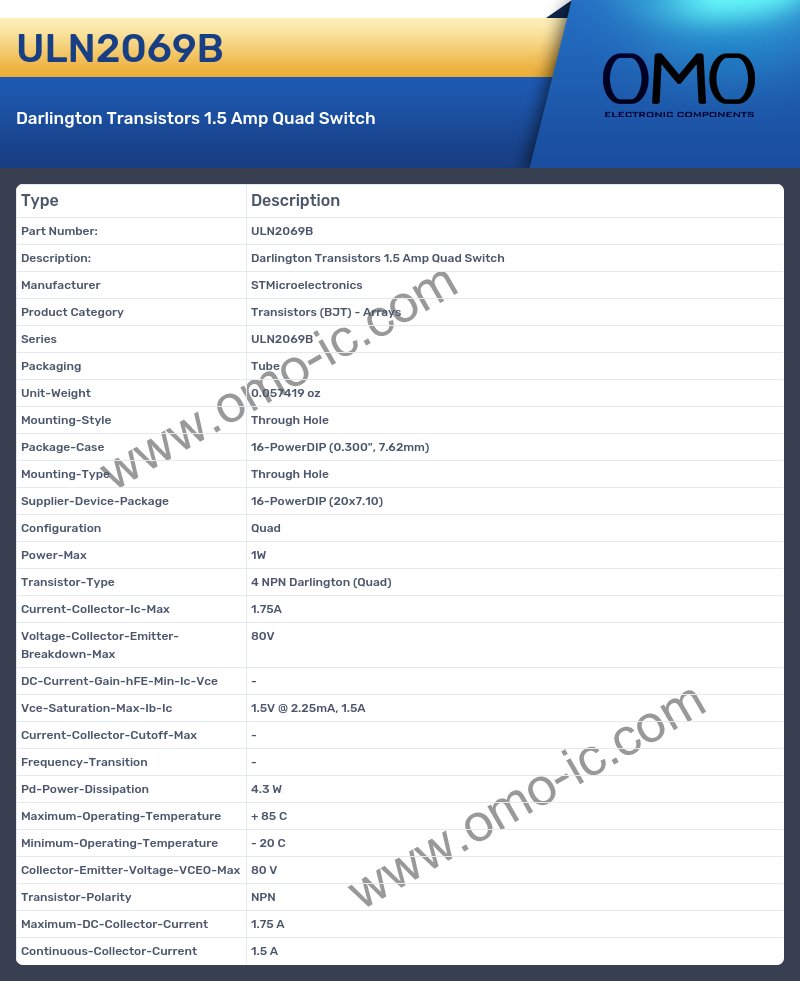

ULN2069B Specifications
A: What is the Series of the product?
Q: The Series of the product is ULN2069B.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.057419 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed 16-PowerDIP (0.300", 7.62mm)
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-PowerDIP (20x7.10).
A: What is the Configuration of the product?
Q: The Configuration of the product is Quad.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 4 NPN Darlington (Quad)
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 1.75A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 80V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is -.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 1.5V @ 2.25mA, 1.5A
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 4.3 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 20 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 80 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 1.75 A.
A: Is the cutoff frequency of the product Continuous-Collector-Current?
Q: Yes, the product's Continuous-Collector-Current is indeed 1.5 A
