VIPER100-22-E Overview

Product belongs to the VIPER series. Type: Current Mode PWM Controller Tube is the packaging method for this product Through Hole Mounting-Style PENTAWATT HV (022Y) Operational temperature range: - Surface Mount mounting type Supplier device package: 5-PENTAWATT Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8 V ~ 15 V This product features 'Frequency-Switching' at Up to 200kHz for optimal performance. The Control-Features include EN, Frequency Control, Soft Start function. Output voltage: 620 V Output current: 3 A Switching frequency is 200 kHz

VIPER100-22-E Image

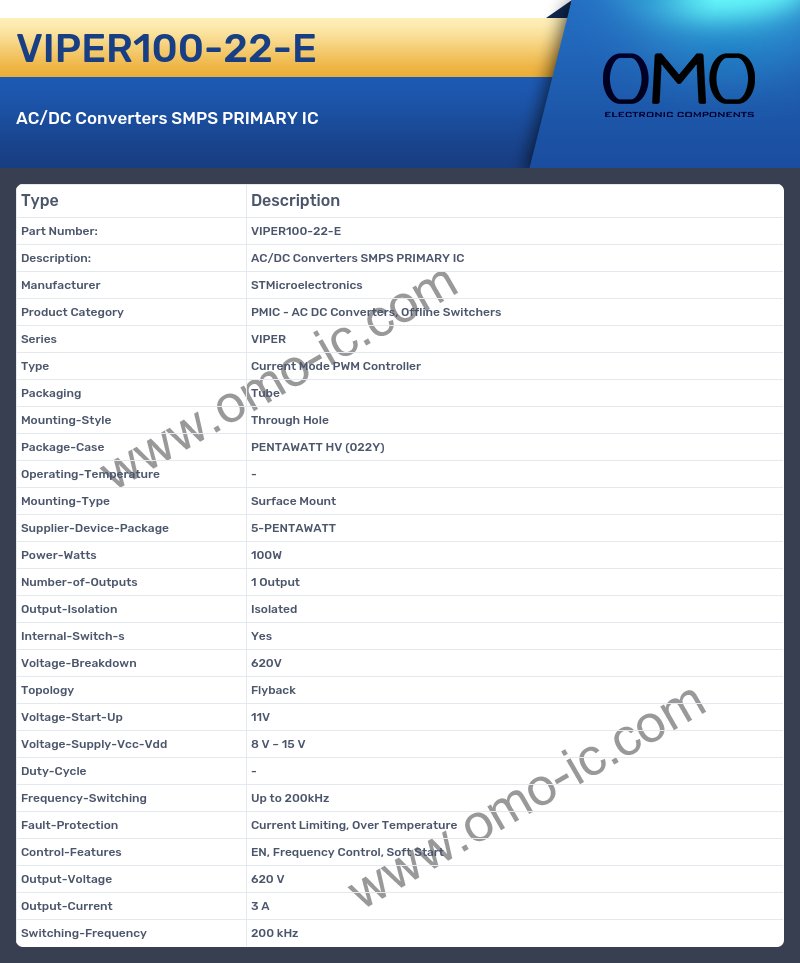

VIPER100-22-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPER
• Type Current Mode PWM Controller
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case PENTAWATT HV (022Y)
• Operating-Temperature -
• Mounting-Type Surface Mount
• Supplier-Device-Package 5-PENTAWATT
• Power-Watts 100W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 620V
• Topology Flyback
• Voltage-Start-Up 11V
• Voltage-Supply-Vcc-Vdd 8 V ~ 15 V
• Duty-Cycle -
• Frequency-Switching Up to 200kHz
• Fault-Protection Current Limiting, Over Temperature
• Control-Features EN, Frequency Control, Soft Start
• Output-Voltage 620 V
• Output-Current 3 A
• Switching-Frequency 200 kHz
