| Mfr. #: | VN16B |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | Power Switch ICs - Power Distribution High Side for SSR |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | VN16B 데이터 시트 |
Product belongs to the VN16B series. Tube is the packaging method for this product Through Hole Mounting-Style Pentawatt-5 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 5-PENTAWATT The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 60 mOhm (Max). Voltage-Load range is 6 V ~ 26 V. Our product delivers a 20A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 82000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product operates at a 6 V to 26 V supply voltage for reliable performance. Output current: 20 A Maximum supply voltage of 26 V Minimum supply voltage is 6 V Max on-resistance of 38 mOhms
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

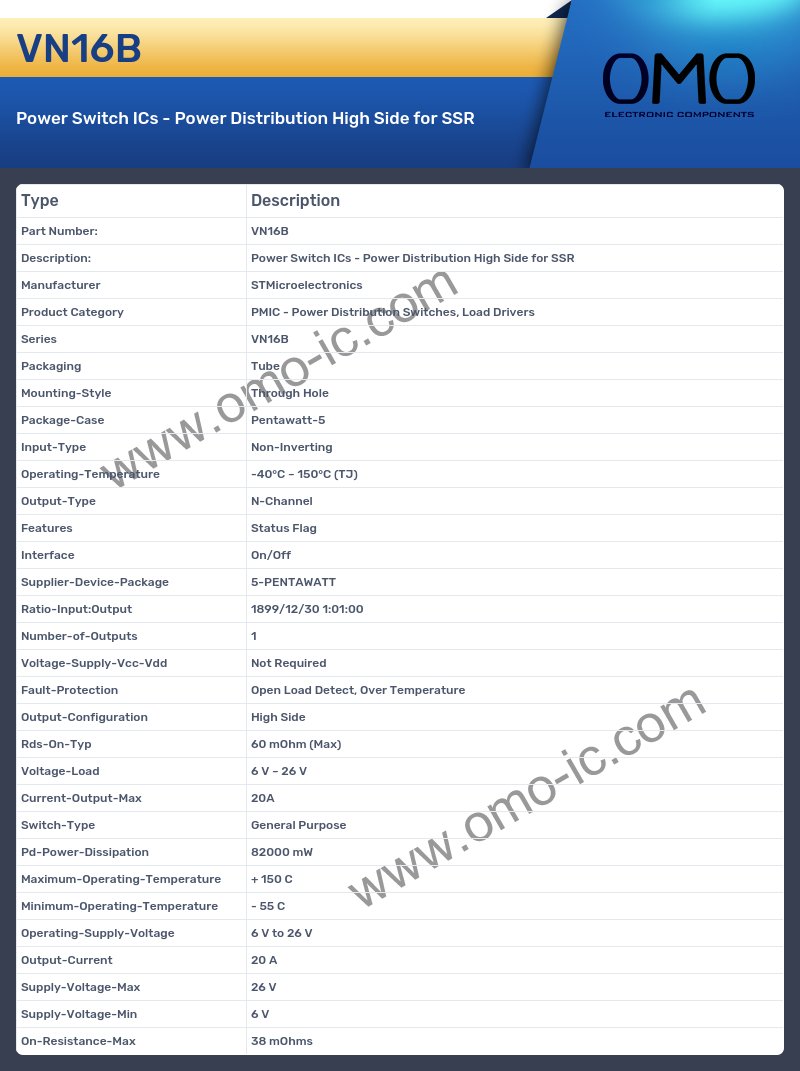

VN16B Specifications
A: What is the Series of the product?
Q: The Series of the product is VN16B.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed Pentawatt-5
A: At what frequency does the Input-Type?
Q: The product Input-Type is Non-Inverting.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 150°C (TJ)
A: Is the cutoff frequency of the product Output-Type?
Q: Yes, the product's Output-Type is indeed N-Channel
A: At what frequency does the Interface?
Q: The product Interface is On/Off.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 5-PENTAWATT
A: At what frequency does the Ratio-InputOutput?
Q: The product Ratio-InputOutput is 1899/12/30 1:01:00.
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1.
A: What is the Voltage-Supply-Vcc-Vdd of the product?
Q: The Voltage-Supply-Vcc-Vdd of the product is Not Required.
A: What is the Output-Configuration of the product?
Q: The Output-Configuration of the product is High Side.
A: What is the Rds-On-Typ of the product?
Q: The Rds-On-Typ of the product is 60 mOhm (Max).
A: What is the Voltage-Load of the product?
Q: The Voltage-Load of the product is 6 V ~ 26 V.
A: Is the cutoff frequency of the product Current-Output-Max?
Q: Yes, the product's Current-Output-Max is indeed 20A
A: Is the cutoff frequency of the product Switch-Type?
Q: Yes, the product's Switch-Type is indeed General Purpose
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 82000 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 6 V to 26 V.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 20 A
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 26 V
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 6 V
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 38 mOhms.
