VN16BSPTR-E

VN16BSPTR-E Overview

Product belongs to the VN16B series. Type: High Side Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 10-PowerSO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 60 mOhm (Max). Voltage-Load range is 6 V ~ 26 V. Our product delivers a 20A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 82000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 25 uA is 92 nA.

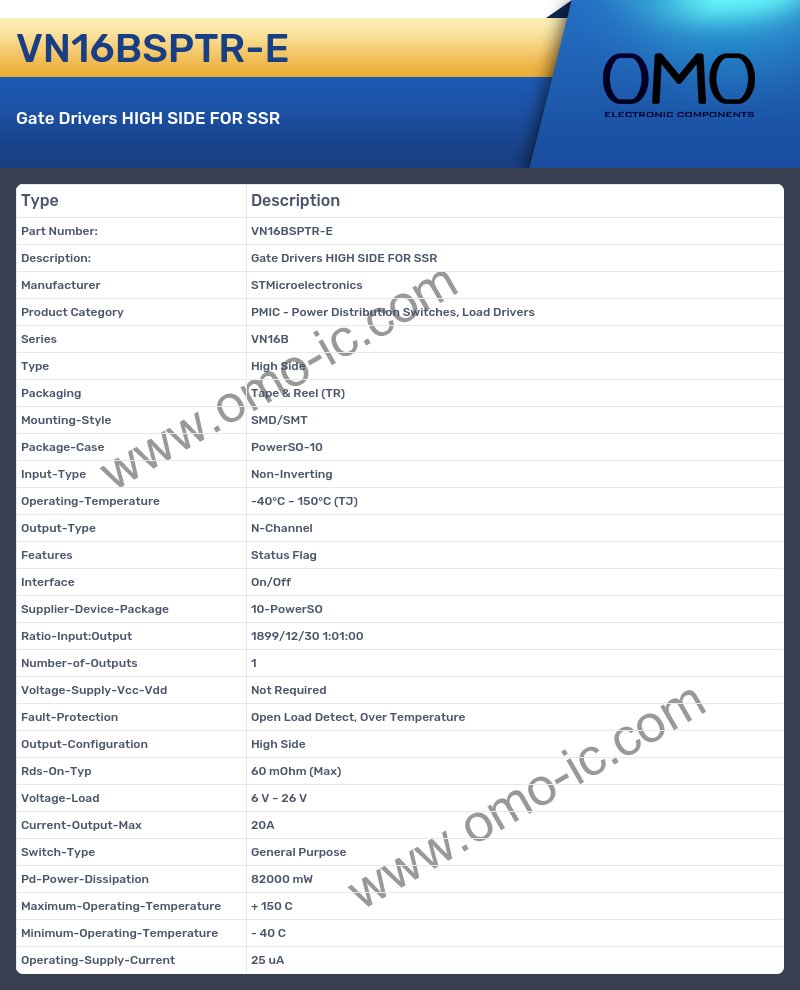

VN16BSPTR-E Image

VN16BSPTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VN16B
• Type High Side
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 10-PowerSO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Open Load Detect, Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 60 mOhm (Max)
• Voltage-Load 6 V ~ 26 V
• Current-Output-Max 20A
• Switch-Type General Purpose
• Pd-Power-Dissipation 82000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 25 uA
