VNL5300S5-E

VNL5300S5-E Overview

Product belongs to the OMNIFET III, VIPower series. Tube is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: 3.5 V ~ 5.5 V The Low Side. The 300 mOhm. Voltage-Load range is 36V (Max). Our product delivers a 2A of 50mA for efficient power management. The Switch-Type is General Purpose.

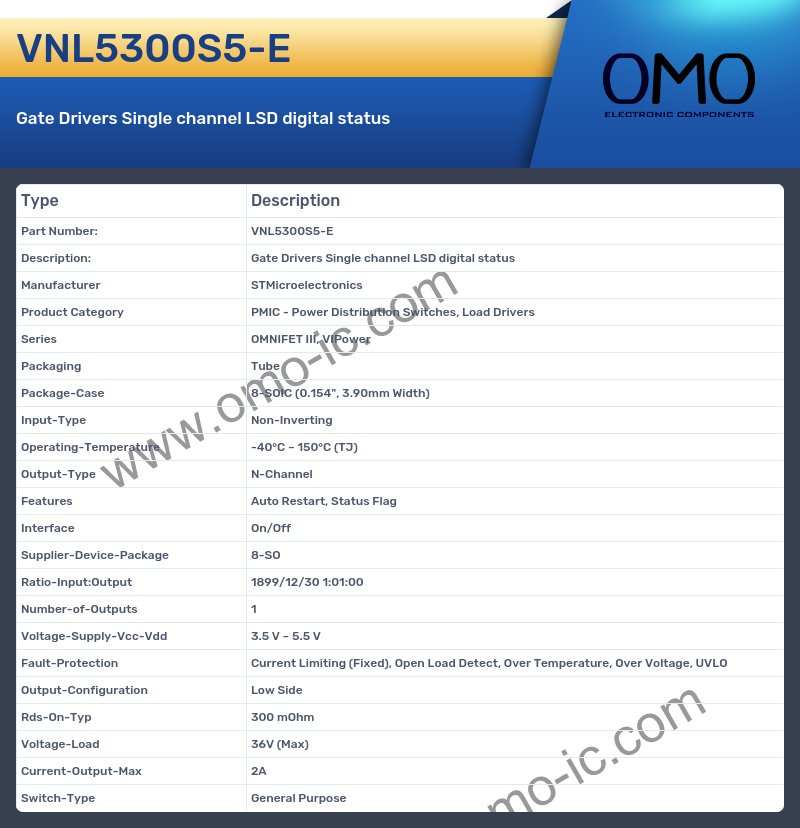

VNL5300S5-E Image

VNL5300S5-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET III, VIPower
• Packaging Tube
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd 3.5 V ~ 5.5 V
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
• Output-Configuration Low Side
• Rds-On-Typ 300 mOhm
• Voltage-Load 36V (Max)
• Current-Output-Max 2A
• Switch-Type General Purpose
