VNLD5090-E

VNLD5090-E Overview

Product belongs to the OMNIFET III, VIPower series. This product is categorized as Driver ICs - Various Type: Low Side Tube is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style SO-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 2 Supply Voltage: Not Required The Low Side. The 90 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 13A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 30 uA is 92 nA. Output current: 18 A This product has a 2.7 us of 16 ns. This product has a 10 us of 16 ns. The 90 mOhms for this product is 12 Ohms. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 3.4 us. 8 us maximum turn-on delay time

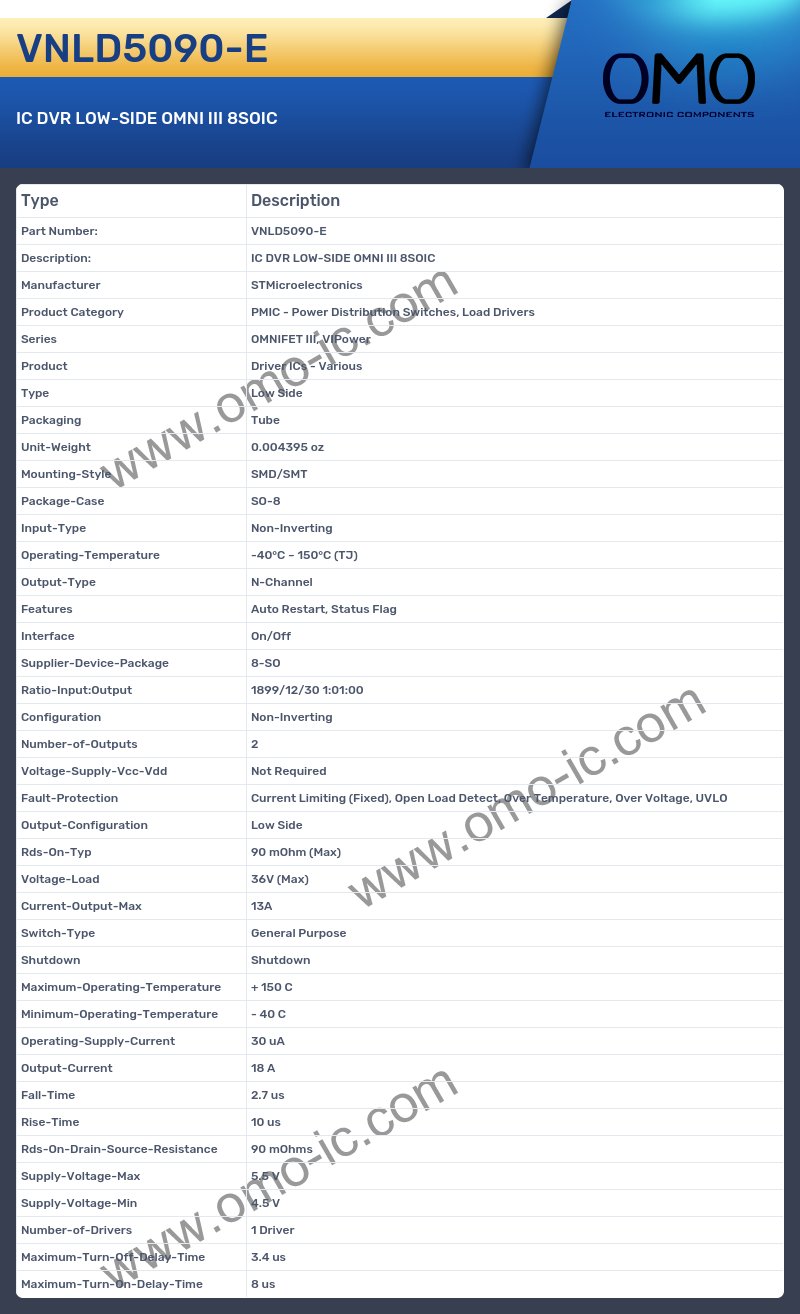

VNLD5090-E Image

VNLD5090-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET III, VIPower
• Product Driver ICs - Various
• Type Low Side
• Packaging Tube
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
• Output-Configuration Low Side
• Rds-On-Typ 90 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 13A
• Switch-Type General Purpose
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 uA
• Output-Current 18 A
• Fall-Time 2.7 us
• Rise-Time 10 us
• Rds-On-Drain-Source-Resistance 90 mOhms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 3.4 us
• Maximum-Turn-On-Delay-Time 8 us
