WT12-A-AI5

WT12-A-AI5 Overview

Product belongs to the WT12 series. Digi-ReelR is the packaging method for this product PCB Mounting-Style Module This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Sensitivity: -86dBm Voltage Supply Range: 3.1 V ~ 3.6 V This product comes with a 8MB Flash memory size. Serial Interfaces: PIO, SPI, UART, USB Class 2 is the class of this product. 3dBm Current receiving is 70mA Bluetooth is the RF family standard. DQPSK, GFSK modulated 70mA range: 8.7mA to 32.1mA This product has an Integrated, Chip antenna-type for wireless connectivity. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.2 to 3.4 V supply voltage for reliable performance. UART USB interface type Our product measures 26 mm x 14 mm x 2.3 mm in dimensions for compact and convenient use. This product's Integrated for easy connection. Version 2.1 EDR is supported.

WT12-A-AI5 Image

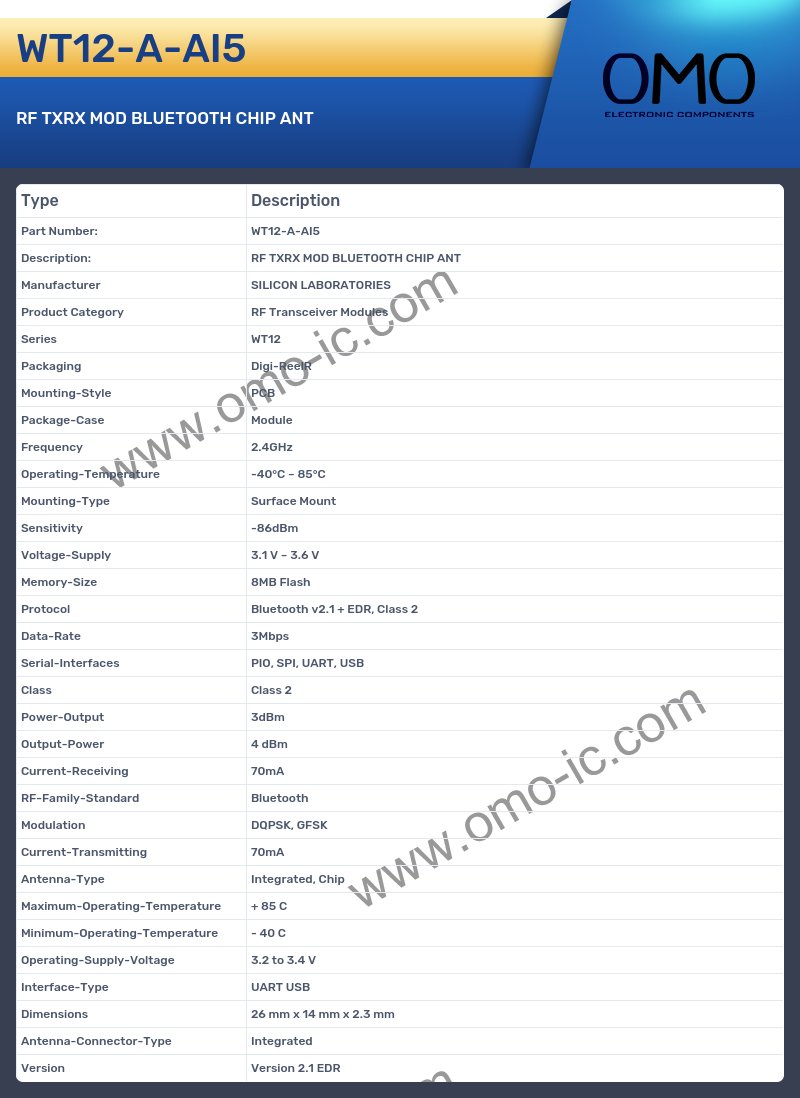

WT12-A-AI5 Specifications

• Manufacturer SILICON LABORATORIES
• Product Category RF Transceiver Modules
• Series WT12
• Packaging Digi-ReelR
• Mounting-Style PCB
• Package-Case Module
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Sensitivity -86dBm
• Voltage-Supply 3.1 V ~ 3.6 V
• Memory-Size 8MB Flash
• Protocol Bluetooth v2.1 + EDR, Class 2
• Data-Rate 3Mbps
• Serial-Interfaces PIO, SPI, UART, USB
• Class Class 2
• Power-Output 3dBm
• Output-Power 4 dBm
• Current-Receiving 70mA
• RF-Family-Standard Bluetooth
• Modulation DQPSK, GFSK
• Current-Transmitting 70mA
• Antenna-Type Integrated, Chip
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.2 to 3.4 V
• Interface-Type UART USB
• Dimensions 26 mm x 14 mm x 2.3 mm
• Antenna-Connector-Type Integrated
• Version Version 2.1 EDR
