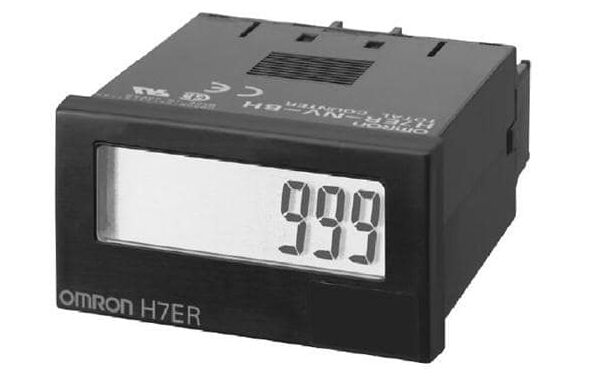

An electronic counter is an electronic device or circuit used to count and record the number of occurrences of a specific event. It can count the input pulses, signals or events in real time, and display the counting results in digital form.Counters & Tachometers



An electronic counter is a digital instrument that uses digital circuit technology to count the number of pulses passed within a given time and display the counting results. Electronic counters are the basis for other digitizing instruments.



Ⅰ. Introduction of electronic counter



The electronic counter is connected to various analog-to-digital converters in its input channel, and then various digital instruments can be made by using the corresponding transducers. The advantages of electronic counters are high measurement accuracy, wide range, multiple functions, simple operation, fast measurement speed, direct display of numbers, and easy automation of the measurement process, and are widely used in industrial production and scientific experiments.



Electronic counters are usually composed of components such as flip-flops, logic gates, counting logic circuits, displays, and clocks. The flip-flop is used to store and update the current value of the counter, the logic gate is used to control the increment or decrement operation of the counter, the counting logic circuit is used to process the input signal and the counting rule, the display is used to display the counting result, and the clock is used to synchronize the operation of the counter.



Ⅱ. Working principle of electronic counter



Electronic counters typically consist of a set of flip-flops, each representing a binary bit. In the initial state, the output value of each flip-flop represents the count value of the corresponding bit.



Electronic counters receive an external clock signal as input to control the counting operation. The clock signal is usually a periodic square wave signal.



Depending on the design and specification of the counter, the count operation may be triggered at the positive edge-triggered or negative edge-triggered of the clock.



When the counter reaches its maximum value, it is also called count overflow. Counting overflow can be processed in different ways, such as resetting the counter to the initial value, triggering an overflow interrupt or generating an overflow flag, etc.



Electronic counters usually include a display for displaying the count in numerical form. The display can be a nixie tube, a liquid crystal display or other types of display devices.



Ⅲ. Common application scenarios of electronic counters



1. Measuring instruments: used to measure and record the measurement values of electricity, water flow, gas flow, etc.



2. Timers and stopwatches: used to measure and record time, such as sports competitions, laboratory experiments, sports training, etc.



3. Pulse counting and frequency measurement: used to measure the number and frequency of pulse signals, such as pulse counting of photoelectric sensors, frequency measurement of audio signals, etc.



4. Event counting and statistics: used to count the number of occurrences of specific events, such as people flow counting, product counting, vehicle passing counting, etc.



5. Frequency division and clock frequency division: used to divide high-frequency signals into lower frequency signals, such as frequency division clocks, frequency synthesizers, etc.



Ⅳ. Common types of electronic counters



1. Down counter



A counter that counts according to the decrementing rule. The counting value is decremented according to the specified method, and the functions of counting down and counting down can be realized.



2. Ring counter



A counter that forms a ring loop by connecting the output of the last flip-flop back to the input of the first flip-flop. The count value is passed circularly among each flip-flop to realize circular counting.



3. Cascade counter

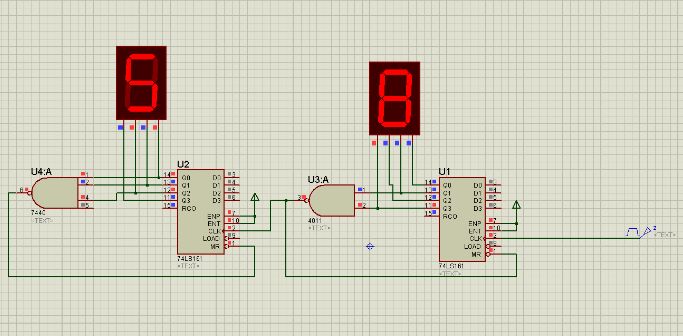

Multiple counters are cascaded together to form a larger range counter. Larger counting ranges can be achieved by cascading counters with different bits.



4. Asynchronous counter



A counter that counts synchronously independent of a clock signal. The counting operation updates the count value immediately under the change of the input signal, and there is no strict timing requirement. The counting operation of the asynchronous counter is not constrained by the external clock signal, so the counting speed may be affected by the change speed of the input signal and the logic delay. Asynchronous counters are easier to implement and use than synchronous counters, but may have some limitations in terms of high-speed counting and accurate counting.



5. Binary counter



One of the most common types of counters, counting based on the binary counting rule. Each flip-flop represents a binary bit, and the count value increments from 0 to a maximum value (for example, an 8-bit counter has a maximum value of 255). Binary counters receive an external clock signal as input to control the counting operation. The clock signal is usually a periodic square wave signal.



6. Preset counter



The counter with preset function can preset the count value. The user can set the count value of the counter to a specific predefined value by inputting a preset signal. The preset counter has a preset input port through which a preset signal is input. The preset signal is usually a binary value, which is used to set the initial value or target count value of the counter. When the preset signal is activated, the count value of the preset counter will be set to the value specified by the preset signal. This setting operation can be performed at any time, regardless of whether the counter is counting or not.



7. Synchronous counter



A counter that counts synchronously based on a clock signal. The counting operation is triggered on the edge of the clock signal or the rising/falling edge of a specific clock pulse to ensure the synchronization and accuracy of counting. A synchronous counter usually consists of flip-flops, logic gates, and a clock signal. Flip-flops are used to store and update the current value of the counter, logic gates are used to control the increment or decrement operation of the counter, and clock signals are used to synchronize the operation of the counter.



Ⅴ. The display mode of common electronic counters



1. Liquid crystal display: Liquid crystal display (LCD) is another common electronic counter display method. LCD has the characteristics of low power consumption and thinner, and can display more information. Through the liquid crystal module controller and the driving circuit, the value of the counter can be displayed on the LCD.



2. Nixie tube display: Nixie tube is one of the most common electronic counter display methods. It consists of multiple seven-segment digital tubes, each of which can display numbers from 0 to 9. By controlling the segment selection signal and bit selection signal of the digital tube, the value of the counter can be displayed.



3. Matrix display: Matrix display consists of multiple pixels, which can be used to display more complex graphics, text or custom symbols. By controlling the state of each pixel, the matrix display of the counter value can be realized.



4. Graphical display: Graphical displays (such as liquid crystal displays, OLED displays) can display more complex graphics, images and text, and are suitable for applications that require richer display content. They can display the value of the counter through the counter controller and the graphics rendering engine.



5. LED display: LED (Light Emitting Diode) is a semiconductor device that emits light, and is also commonly used in the display of electronic counters. LED display can have higher brightness and contrast, which is suitable for display in outdoor or bright environment.



Ⅵ. Classification of electronic counters



1. Frequency counter: a counter specially used to measure high frequency and microwave frequency. The basic principle is to determine the frequency of the signal by counting the number of signal cycles per unit time. It usually takes an input signal, converts it to a standard square wave or pulse signal, and uses a counter to measure the number of pulses over a certain period of time. By comparing this quantity to a known time interval, the frequency of the signal can be calculated.



2. Universal counter: Measurable frequency, period, multi-cycle average, time interval, frequency ratio and accumulation, etc. Universal counters can support different count ranges, ranging from a few count units to billions. They usually have adjustable sensitivity and resolution to accommodate different signal strengths and frequency ranges. General purpose counters usually have a digital display that shows the current count value. They can also provide an output interface, such as a digital interface, an analog interface or a communication interface, in order to transfer the counting results to other devices or systems for further processing.



3. Calculation counter: a counter with calculation function, which can perform mathematical operations, and can be used to control the entire working process of measurement, calculation and display. The counter part of a counting counter is used to count incoming pulses or events. It can be incremented or decremented according to different calculation operations. Registers in computational counters are used to store the current value and intermediate results of the counter. Registers can store binary numbers with multiple bits and provide the appropriate logic and interface for arithmetic operations.



4. Microwave counter: A microwave counter is an instrument or device specially used to measure the frequency of microwave signals and count microwave pulses. It is widely used in communication, radar, satellite communication, radio frequency spectrum analysis and other fields in the microwave field. Microwave counters usually have high precision and high resolution, and can measure and count tiny frequency changes and weak microwave pulse signals. They provide accurate measurements that are important for performance analysis and debugging of microwave systems. The microwave counter has a fast counting speed and can handle high-frequency microwave pulse signals. They are capable of counting and measuring in real time and provide instant results.



Ⅶ. Precautions for use and maintenance methods of electronic counters



Before starting to use the electronic counter, carefully read and understand the operating guidelines and safety instructions in the instruction manual. Follow the manufacturer's guidelines and recommendations for use.



Make sure the electronic counter is working under proper environmental conditions. Avoid environments with high temperature, high humidity, strong magnetic fields or strong electromagnetic interference, which may affect the performance and measurement results of the counter.



Calibrate and check the electronic counter regularly to ensure the accuracy and reliability of the measurement results. Follow the manufacturer's recommendations for calibration and verification, or have them performed by professionals.

Handle and use the electronic counter with care to avoid shock, vibration or other physical damage. Properly store and protect the counter, using accessories such as dust covers or protection kits to prolong its life.



When operating electronic counters, follow appropriate safety measures such as wearing protective gloves, goggles, or other necessary personal protective equipment. Avoid direct contact with high voltage, high power or other dangerous components.



Frequently Asked Questions



1. What types of signals or events are electronic counters used to measure?



Electronic counters are most commonly used to count pulse signals, such as rectangular pulses, square wave pulses, radio frequency pulses, etc. It can accurately measure the frequency, period and pulse width of pulse signals. Electronic counters can also be used to count aperiodic events. For example, it can be used to count events such as electron pulses, light pulses, particle impacts, etc. that occur over a specific time period.



2. What factors affect the measurement accuracy of electronic counters?



The measurement accuracy of an electronic counter is directly related to the stability of its internal clock; counter resolution refers to the smallest counting unit that the counter can distinguish; the quality of the input signal plays an important role in the measurement accuracy; counting time refers to the time interval that the counter uses for measurement .



3. What is the resolution of the electronic counter?



The resolution of an electronic counter refers to the smallest counting unit that the counter can distinguish. Resolution is usually determined by the number of bits in the counter. The value of the resolution depends on the counting range and number of bits of the counter. A higher number of bits usually means higher resolution, i.e. more precise counting. A smaller counting range may result in lower resolution, ie the counter can only count in larger counting units.
