Overview

CR2032 and CR1632 are representative models of 3V lithium manganese (Li-Mn) coin cell batteries. They provide stable voltage output and long lifespan, making them widely used in computer motherboards, medical devices, and mini remote controls. Although both belong to the CR series, differences in size and capacity directly affect device compatibility and battery life. This article provides a comprehensive comparison to help users make an accurate selection.

Why Compare Them?

Many users mistakenly believe they are interchangeable. However, CR2032 (diameter: 20mm) is 25% wider than CR1632 (16mm) and has 1.7 times higher capacity. Choosing the wrong model may lead to power failure or reduced battery life. Understanding these differences helps prevent installation issues caused by size mismatches.

Data Interpretation: The table shows that CR2032 has an average capacity of 220mAh, which is 1.7 times that of CR1632 (130mAh). The difference in diameter significantly affects device compatibility.

Physical Size Difference

CR2032 has a diameter 4mm larger than CR1632 (as shown in the coin size comparison image), making it impossible to fit into battery compartments smaller than 16mm. Although both have the same thickness, CR1632 is smaller and 40% lighter, making it ideal for ultra-thin devices.

Advantages Comparison:

• CR2032: Large capacity for long battery life.
• CR1632: Compact design for miniature spaces.

Capacity Difference

CR2032 has a typical capacity of 220mAh, about 1.7 times that of CR1632. For example, in a computer motherboard CMOS battery, CR2032 can provide power for 5 years, while CR1632 would last less than 3 years.

Application Compatibility

CR2032 is suitable for:

• Devices with sufficient space (e.g., electronic scales, car key fobs)
• High-power consumption devices (e.g., LED lights, wireless sensors)

CR1632 is suitable for:

• Compact devices with thickness ≤8mm (e.g., Bluetooth headsets, card-sized remote controls)
• Lightweight-priority applications (e.g., backup battery for smartwatches)

Voltage Stability

Both provide a stable 3V output. However, in high-load devices (e.g., laser pointers), CR2032 maintains a steadier voltage curve due to its higher capacity. Test data shows that after 1 hour of continuous operation, CR2032 voltage drops by only 0.1V, while CR1632 drops by 0.25V.

Temperature Adaptability

Although both work within the same temperature range (-30°C to +70°C), CR2032 retains more capacity in low temperatures. Tests indicate that at -20°C, CR2032 retains 15% more capacity than CR1632, making it more suitable for outdoor devices.

Energy Efficiency

Advantages Comparison: CR2032 has 30% higher energy density per unit volume than CR1632, offering longer operation within the same space. For example, in a glucose meter, CR2032 supports 1000 measurements, while CR1632 supports only 600.

Typical CR2032 Applications

• Consumer electronics: Calculators, computer motherboards (e.g., Dell/Lenovo models)
• Medical devices: Omron blood pressure monitors, Yuwell thermometers
• Industrial applications: LoRa sensors, smart meters

Typical CR1632 Applications

• Wearable devices: Huawei Watch GT backup battery, JBL Bluetooth headsets
• Portable tools: Ultra-thin electronic scales (≤5mm thickness), laser pointers
• Special designs: Card-sized remote controls (e.g., Xiaomi smart home controllers)

Selection Recommendations

• Choose CR2032: When the device has enough space and requires long battery life (e.g., motherboard battery replaced annually).
• Choose CR1632: When the device thickness is ≤16mm or requires ultra-lightweight design (e.g., a Bluetooth headset weighing only 50g).
• Do not interchange: The diameter difference causes physical incompatibility, and forced replacement may damage battery contacts.

The comparison shows that CR2032, with its high capacity and strong adaptability, is the preferred choice for general devices, while CR1632 dominates the miniature device market due to its compact design. Users should decide based on battery compartment size and battery life requirements.

For example, if replacing a car key battery, CR2032 provides a 5-year lifespan. However, if the smartwatch backup battery compartment is only 16mm wide, CR1632 is the only option.

Final Recommendation: Before purchasing, measure the battery compartment size and check the device manual for voltage requirements to ensure an accurate match.

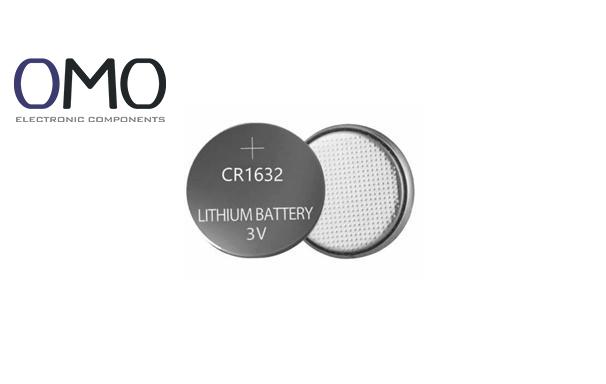

What are CR1632 batteries?

CR1632 cells are 3-volt coin-shaped lithium manganese dioxide (Li-MnO2) power sources frequently employed in compact electronics like key fobs and portable gadgets, delivering stable power through their space-efficient design.

Is a CR1632 battery the same as a CR2032?

Although CR1632 and CR2032 batteries share the same lithium-manganese dioxide chemistry and 3V nominal voltage, their varying dimensions and energy storage capacities result in distinct practical uses.

What is the capacity of CR2032 3V battery?

The CR2032 3V lithium battery typically provides a capacity ranging from 210 to 240 milliampere-hours (mAh), with variations influenced by the manufacturer and product specifications.

Will a CR2032 work for CR2016?

When a battery compartment is specifically designed for the 1.6 mm thickness of a CR2016 cell, the thicker CR2032 (3.2 mm) might be physically incompatible. Some equipment utilizes a stacked configuration with two CR2016 batteries (combined thickness 3.2 mm). In such installations, a single CR2032 could potentially serve as an effective replacement for the dual CR2016 arrangement.

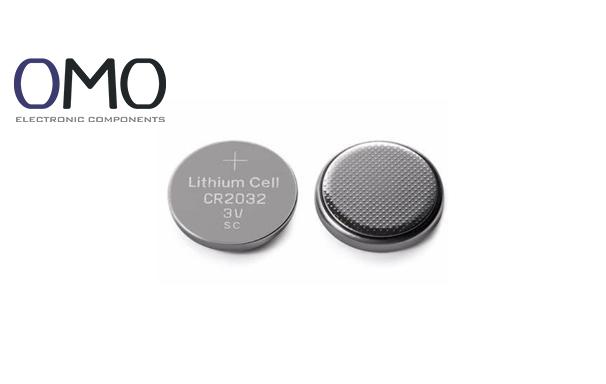

What are CR2032 batteries used for?

CR2032 batteries are valued for their reliable performance, extended lifespan, and compact form factor, making them a popular choice for powering numerous compact electronics including smart cards, key fobs, wireless earbuds, calculators, remote devices, automotive components, and fitness trackers.
