Definition and Core Function

The main difference between direct current (DC) and alternating current (AC) is the direction of the current. DC flows in one direction only, like from a battery. AC changes direction regularly, like from a home socket. A DC-AC converter (also called an inverter) changes DC into AC. It lets DC sources like solar panels or batteries power AC devices. This is important for using energy in different places and systems.

Key Components

The main parts of an inverter include:

• Oscillator Circuit: Creates the base AC waveform (square wave or sine wave).
• Transformer and Boost Module: Increases low-voltage DC to target AC voltage (for example, 12V DC to 220V AC).
• Filter Circuit: Uses inductors and capacitors (LC circuit) to remove high-frequency noise and improve waveform quality.

These three parts work together. They affect how efficient and stable the inverter is.

Basics of Signal Generation

Square wave inverters create steps in the output, making them cheap but less compatible. Modified sine wave inverters use steps to copy a sine curve. They work with most home appliances. Pure sine wave inverters give smooth output. They can power precise tools like medical devices. The frequency (usually 50/60Hz) and voltage must match the grid standard exactly.

Classification by Output Waveform

Product Comparison: A certain brand’s pure sine wave inverter uses an IGBT module (Insulated Gate Bipolar Transistor), which gives 8% higher efficiency than traditional MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designs. It also supports 0.5% harmonic distortion.

Classification by Application Scenario

• Single-Phase Inverter: Gives 220V output. Used in home solar systems (under 5kW).
• Three-Phase Inverter: Gives 380V output. Used for industrial motors and high-power equipment.
• Grid-Tied Inverter: Can send power to the grid. Must meet standards like THD < 3% (Total Harmonic Distortion).
• Off-Grid Inverter: Works alone. Good for places with no power grid.

Renewable Energy Systems

Solar panels give DC power. An inverter changes this to AC to join the grid. For example, in a 10kW solar system, an inverter with MPPT (Maximum Power Point Tracking) can improve power output by 15%-20%. Wind turbines also need inverters to change unstable DC into stable AC.

Uninterruptible Power Supply (UPS)

Data centers need UPS to switch to inverter power within 0.02 seconds. A high-end model can reach over 99.9% conversion efficiency. It keeps voltage changes within ±1%, which protects servers from downtime.

Electric Vehicles and Mobile Devices

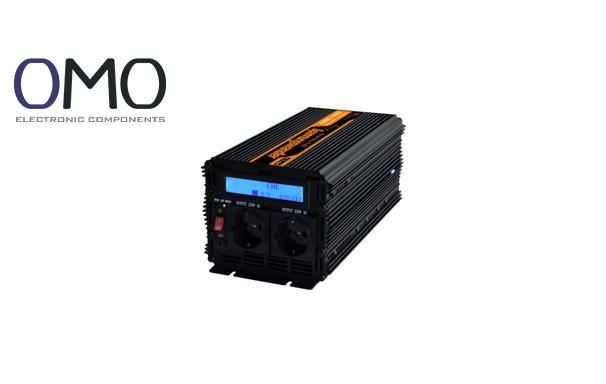

Car inverters can change battery DC (like 300V) into AC to run laptops or coffee makers.

Product Comparison: A portable inverter weighs only 1.2kg but supports 2000W peak power. It is 30% smaller than similar products.

Performance Comparison of Different Inverter Types

Key Factors in Choosing an Inverter

• Power Match: The device power must be less than or equal to the inverter’s continuous power. Leave 20% margin for peak power.
• Environment Fit: Use IP65-rated inverters for industrial places. In hot areas, choose designs with strong cooling.
• Smart Features: Models with built-in Wi-Fi (like Brand X Series) allow remote settings. Their failure rate is 40% lower.

DC Input and Oscillator Function

After getting DC input, the oscillator makes pulse signals using fast-switching parts (like MOSFET). For example, one model uses a 20kHz switch, which cuts electromagnetic noise by 50% compared to older 10kHz designs.

Transformer and Boost Process

The pulse goes into a high-frequency transformer. The core material affects efficiency—nanocrystalline alloy loses 60% less energy than silicon steel, but costs 30% more.

Filtering and Output Adjustment

The LC filter removes 90% of harmonics. A feedback circuit checks voltage in real time (with ±1V error). This keeps the output steady.

Flexible Energy Conversion

They support many DC sources like solar and batteries. One hybrid inverter even works with both wind and solar input.

High Efficiency and Stability

Product Comparison: A commercial inverter reached 98% efficiency in tests. This is 6% higher than the industry average (92%), saving over ¥2000 per year in electricity.

Smart Features and Scalability

Modular designs allow stacking power (like 5kW × 4 = 20kW). Models with AI algorithms can predict load changes. This makes the response 50% faster.

How to convert DC to AC?

The transformation of direct current (DC) into alternating current (AC) is typically achieved through a device known as an inverter. This electronic apparatus transforms single-direction DC electrical flow into an AC waveform characterized by periodic voltage reversals.

How to make a 12V DC to AC converter?​

Developing a DC-to-AC converter for 12V systems involves mastering fundamental electrical concepts, meticulously selecting components, designing an effective circuit architecture, assembling and rigorously testing the device, and verifying adherence to established safety protocols.

How many volts DC to AC?

The process of converting DC voltage to AC voltage can differ significantly based on the inverter model and its intended use. For instance, if the AC output is 230 V, the corresponding DC voltage would be approximately 162.66 V (calculated by dividing 230 V by the square root of 2, which is 1.414).

What is a AC to DC converter?

AC-DC converters are electrical devices designed to transform alternating current into direct current. By modifying the input waveform through rectification, these circuits restrict electron flow to a single directional path.
